Removal and installation of the blower motor - ra83001400120x(0120)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with automatic heater control
Operation No. of Job Texts and Work Units, Standard Texts and Flat Rates:
| Battery | Disconnect negative terminal. |
| Air collector unit | Remove (Removal and installation of the air collector unit and water collector ). |
| Dust filter | Take out. |
| Electrical connections | Disconnect. |

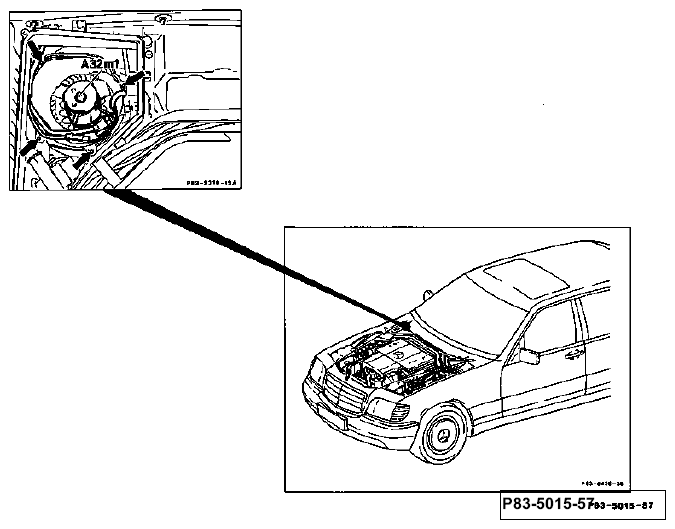

| 4 screws (arrows) | Unscrew and remove. |
| Blower | Take out. |
| Install | In the reverse sequence. |
|
NOTE:
The blower must not be dismantled but must be replaced complete. |
|
