Removal and installation of heat exchanger - ra83001400110x(0110)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 with automatic heater control
Operation No. of Job Texts and Work Units, Standard Texts and Flat Rates:
| Heater unit | Remove (Removal and installation of heater unit ). |

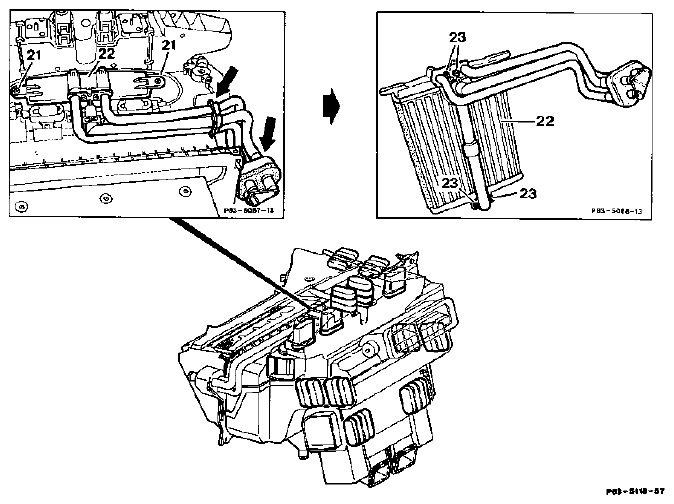

| Clamps (arrows) | Unclip. |
| Screws (21) | Unscrew and remove. |
| Heat exchanger (22) | Pull out upwards. |
| Pipes on heat exchanger | Disconnect and fit onto new heat exchanger using new O-rings and new plugging fork; to do this, unscrew screws (23). |
| Heater unit | Clean out inside and remove any leaked coolant. |
| Install | In the reverse sequence. |
