Arrangement of components - ra83001400401x(0401)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 with auxiliary heating

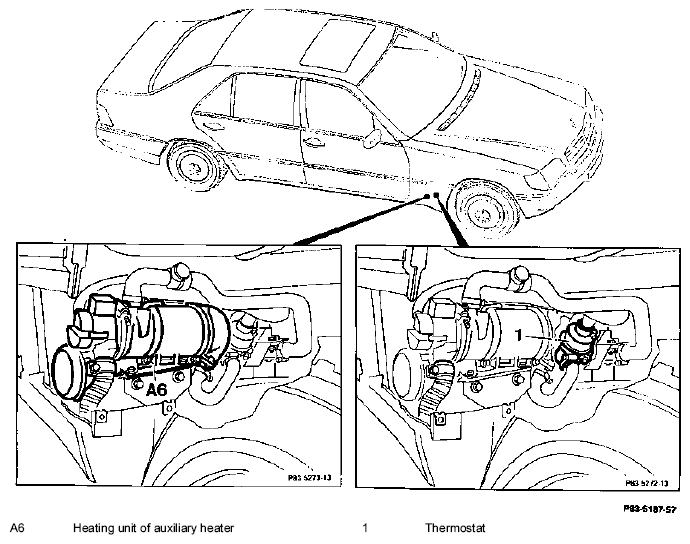

Fig 1: Identifying Auxiliary Heater And Thermostat Location
G05440891Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

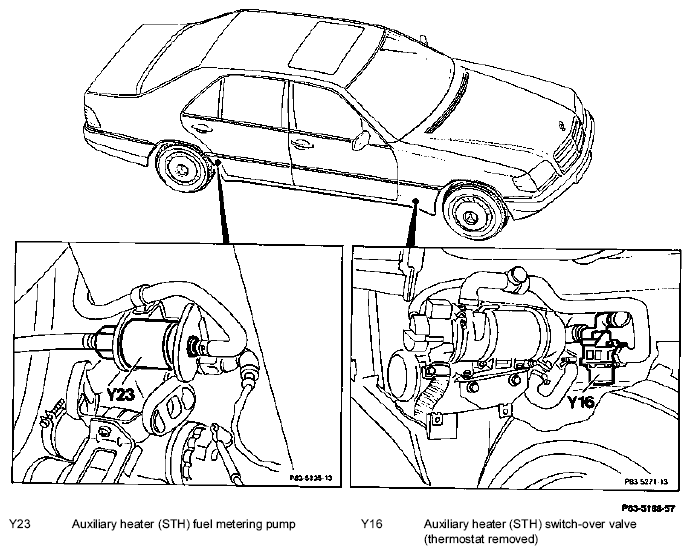

Fig 2: Identifying Auxiliary Heater Fuel Metering Pump And Auxiliary Heater Switch-Over Valve
G05440892Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

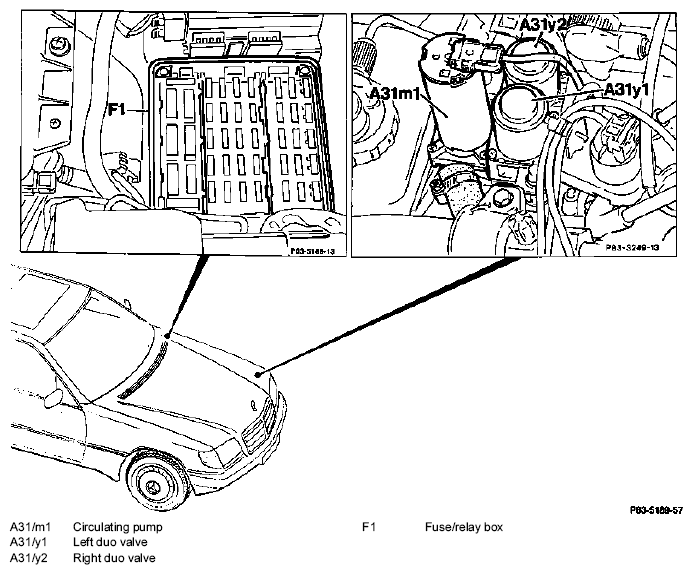

Fig 3: Identifying Circulating Pump, Left Duo Valve, Right Duo Valve And Relay Box
G05440893Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

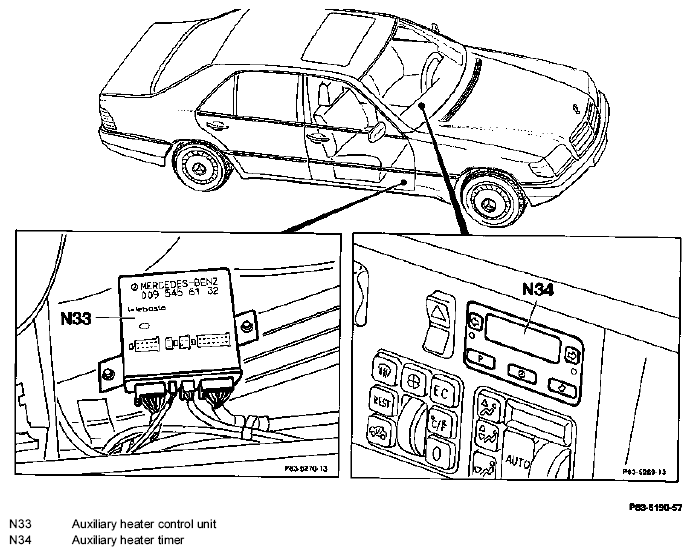

Fig 4: Identifying Auxiliary Heater Control Unit And Identifying Auxiliary Heater Timer
G05440894Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

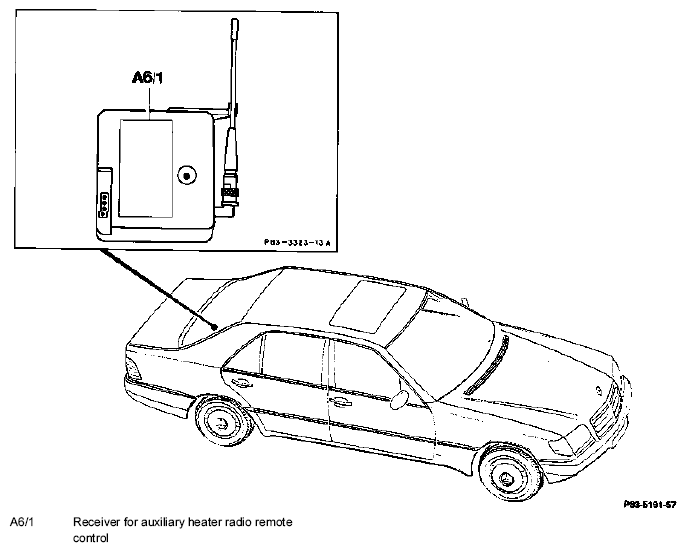

Fig 5: Identifying Receiver For Auxiliary Heater Radio Remote Control
G05440895Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
