Refrigerant injection nozzle replaced by new version - BT83.50-P-0001-01S
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL WDB140.### #A as of 128374 with CODE (582) Rear air conditioning

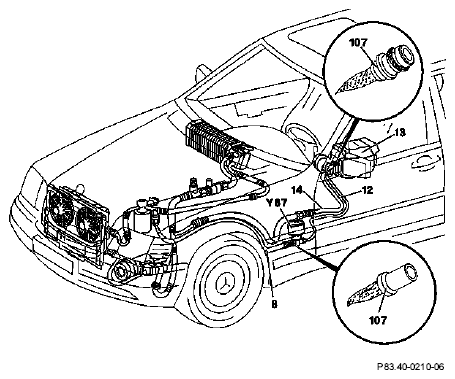

As of vehicle ident. end number 128 374 the refrigerant injection nozzle (107) is no longer located in the rear air conditioning evaporator (13) due to noise reasons; a modified refrigerant injection valve (107) is installed in the refrigerant shut-off valve (Y67).
Since 01/93 a refrigerant shut-off valve (Y67) with improved noise characteristics has been installed which can be recognized by the following part numbers:
New part number ND 113 300 - 1541
Previous part number 113 300 - 1540 From this modification date on note the changed quantity of refrigerant (1250 g, previously 1400 g) (new filling label with part number 001 989 08 03).
