Ventilation, function - GF83.10-P-2000B
MODEL 140 as of 1.9.95

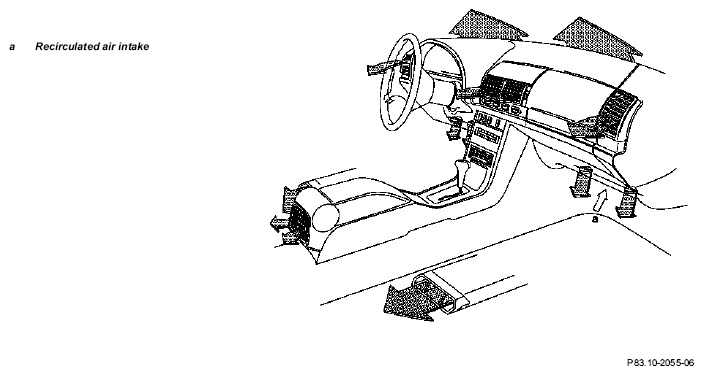

Represented with automatic air conditioning

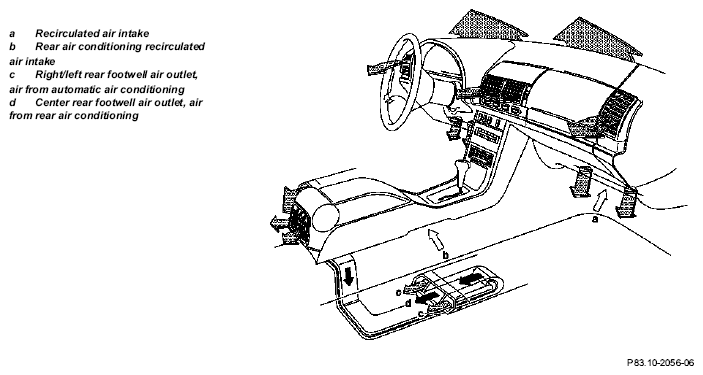

Represented with rear air conditioning
Function
The ventilation system
- keeps the windows from fogging up
- provides oxygen for the vehicle passengers
- helps to achieve a uniform and pleasant temperature in the passenger compartment rapidly.
In normal operation, ventilation is accomplished with the support of the blower when the vehicle is standing still or to increase the air flow rate.
Fresh air is sucked in through the air intake in the engine hood and through the main air flap into the automatic A/C housing. The air travels through the air ducts to the air outlets into the passenger compartment depending on the settings on the pushbutton control module.
In the recirculated air mode, air is sucked out of the vehicle interior by the fan through the recirculated air flap (main air flap is closed) and delivered into the automatic A/C housing.
The air flows through the nozzles below the rear shelf into the trunk and out of the vehicle through the rear compartment nozzle.
On vehicles with rear air conditioning (code 582) the air required for cooling the rear compartment when the rear air conditioning is switched on is sucked only out of the vehicle interior.
A separate blower is located in the rear air conditioning housing for sucking in the air.
The air flows through the rear compartment nozzle and/or air outlets in the rear footwell into the rear passenger compartment depending on the settings on the rear air conditioning pushbutton control module.
The air flows through nozzles below the rear shelf into the trunk and out of the vehicle through the rear compartment nozzle.
Air inlet, location/function GF83.10-P-2138A Air ducts, location/purpose/design GF83.10-P-2139A Blower, location/purpose/design/function GF83.10-P-2102A with code 582 (rear air conditioning) GF83.10-P-2102S Blower regulator, location/purpose/function GF83.10-P-2141A with code 582 (rear air conditioning) GF83.10-P-2141S Dust filter, location/purpose/function GF83.10-P-2142A Rear ventilation, location/purpose/function GF83.10-P-2143A Defroster nozzle, location/purpose/function GF83.10-P-2144A Center nozzle, location/purpose/function GF83.10-P-2149A Side nozzle, location/purpose/function GF83.10-P-2150B Front footwell air outlet, location/purpose/function GF83.10-P-2145A Rear footwell air outlet, location/purpose/function GF83.10-P-2146A Rear compartment nozzle, location/purpose/function GF83.10-P-2151A Rear compartment nozzle, location/purpose/design/function with code 582 (rear air conditioning) GF83.10-P-2111S Fresh air/recirculated air flap, location/purpose/design/function GF83.20-P-2104A Blower pushbutton, location/purpose/function GF83.40-P-2144A Rear air conditioning blower selector, location/purpose/function with code 582 (rear air conditioning) GF83.50-P-2115S Air distribution pushbutton, location/purpose/function GF83.40-P-2159A Rear air conditioning air distribution slide, location/purpose/function with code 582 (rear air conditioning) GF83.50-P-2116S Recirculated air pushbutton, location/purpose/function GF83.40-P-2145A Auto pushbutton, location/purpose/function GF83.40-P-2147A Activated charcoal filter pushbutton, location/purpose/function with code 306a (activated charcoal filter) GF83.40-P-2149A Defroster pushbutton, location/purpose/function GF83.40-P-2139A Automatic air conditioning housing, location/purpose/design/function GF83.40-P-2105A Rear air conditioning housing, location/purpose/design/function with code 582 (rear air conditioning) GF83.50-P-2117S Smog sensor, location/purpose/function with code 306a (activated charcoal filter) GF83.10-P-2152A Activated charcoal filter, location/purpose/function with code 306a (activated charcoal filter) GF83.30-P-2118A Activated charcoal filter actuator motor, location/purpose/function with code 306a (activated charcoal filter) GF83.30-P-2117A Recirculated air filter, location/purpose/function GF83.10-P-2154A
