Vacuum system, function - GF83.10-P-2001B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140 as of 1.9.95

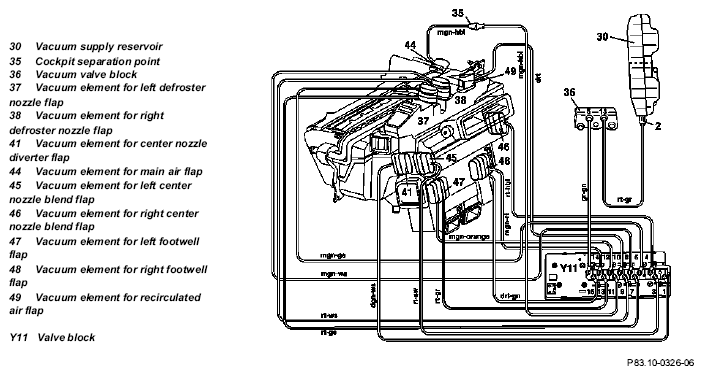

Illustration of automatic air conditioning (auto AC)

Fig 1: Vacuum System Function Diagram - Illustration Of Automatic Air Conditioning (Auto AC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Vacuum system for automatic air conditioning (auto AC)

With automatic air conditioning, all of the vacuum elements (37-49), which serve for air distribution, are controlled by the vacuum system.

Vacuum is present at the valve block (Y11) from the vacuum supply reservoir (30) and vacuum valve block (36). The valve block (Y11) allows the vacuum to pass to the control for the individual flaps (37-49) depending on the setting on the pushbutton control module.

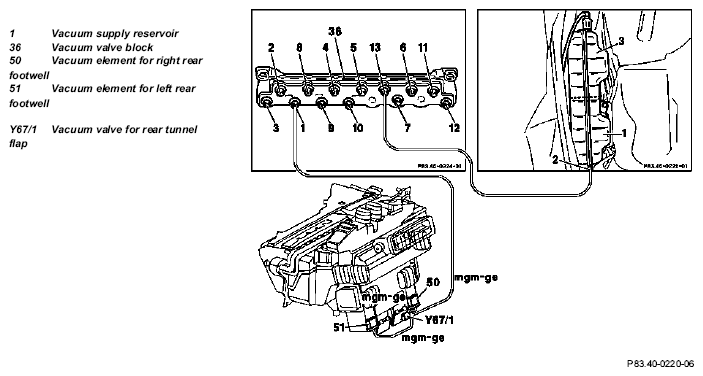

Illustration of rear air conditioning

Fig 2: Vacuum System Diagram For Automatic Air Conditioning (Auto AC) - Illustration Of Rear Air Conditioning

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear air conditioning vacuum system

The vacuum valve block (36) is supplied with vacuum from the vacuum supply reservoir (1). The vacuum valve block (36) transfers the vacuum on to the vacuum valve for the rear tunnel flap (Y67/1).

This valve is activated by the rear air conditioning pushbutton control module when the rear air conditioning is switched on and off.

When the rear air conditioning is switched on, the flaps for the rear footwell on the automatic A/C housing are closed by the vacuum valve for the rear tunnel flap (Y67/1) and the vacuum elements for the left and right rear footwell flaps (51 and 50).

The automatic air conditioning cools only the front footwell and the rear air conditioning takes over the cooling of the rear footwell.

Valve block, location/purpose/function		GF83.10-P-2153A
Vacuum element for defroster nozzle, location/purpose/design/function		GF83.10-P-2116A
Vacuum element for blend flap, location/purpose/design/function		GF83.10-P-2118A
Vacuum element for footwell flap, location/purpose/design/function		GF83.10-P-2120A
Vacuum element for diverter flap, location/purpose/design/function		GF83.10-P-2123A
Vacuum element for main air flap, location/purpose/design/function		GF83.10-P-2125A
Vacuum element for recirculated air flap, location/purpose/design/function		GF83.10-P-2126A
Vacuum element for rear tunnel flap, location/purpose/function	with air conditioning (code 582)	GF83.10-P-2136S
Vacuum element for rear footwell flap, location/purpose/function	with air conditioning (Code 582)	GF83.10-P-2137S
