Vacuum element for rear footwell flap, location - GF83.10-P-2136-01S

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

The vacuum elements for the left (51) and right (50) rear footwell flaps are located at the bottom of the automatic A/C housing.

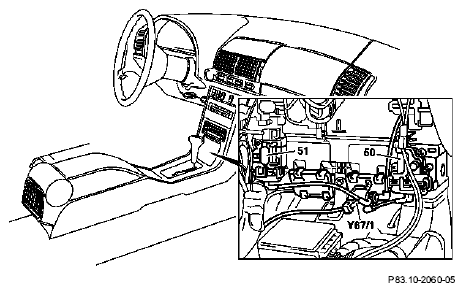

Fig 1: Identifying Vacuum Element Location For Rear Footwell Flap
G05440686Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
