Vacuum element for rear footwell flap, function - GF83.10-P-2136-02S
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Function
When the rear air conditioning is switched on, the vacuum valve for the rear tunnel flap (Y67/1) is open.

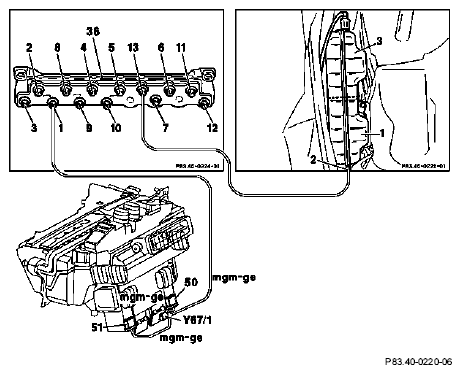

In this manner, vacuum travels through the vacuum supply reservoir (1), the vacuum valve block (36) and vacuum valve for the rear tunnel flap (Y67/1) to the vacuum element for the right rear footwell (50) and the vacuum element for the left rear footwell (51), which close the rear footwell flap on the automatic A/C housing.
The automatic air conditioning then cools only the front footwell and the rear air conditioning takes over cooling of the rear footwell.
