Refrigerant injection valve, location - GF83.50-P-2113-01S

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

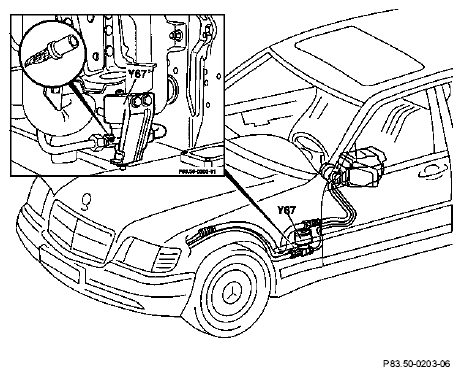

The refrigerant injection valve (magnified) is located in the feed line to the refrigerant shutoff valve (Y67) at the front left in the wheelhouse below the wheelhouse paneling.

Fig 1: Identifying Refrigerant Injection Valve Location
G05440737Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
