Receiver, location - GF83.40-P-2122-02A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 210

The receiver (1) is located in the engine compartment at the lower front left side.

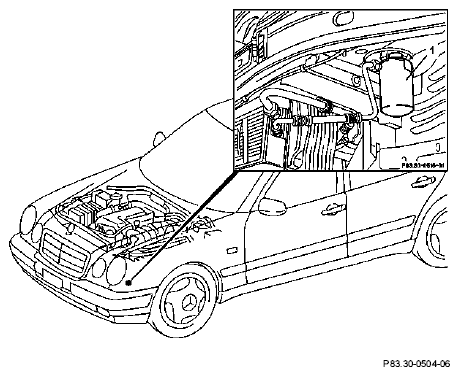

Fig 1: Identifying Receiver Location In Engine Compartment At Lower Front Left Side
G05440727Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
