Rear air conditioning housing, purpose - GF83.50-P-2102-03S
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

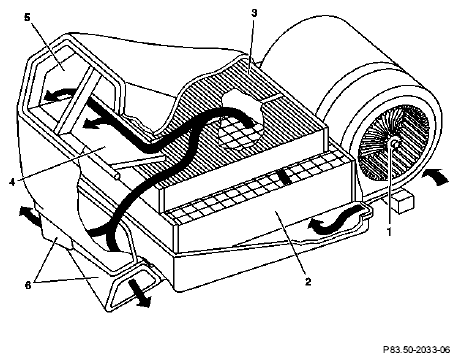

The rear air conditioning housing serves to hold the following components
- Blower (1)
- Evaporator (2)
- Heater core (3)
- Air distribution flap (4)
forming one complete unit.
The rear air conditioning housing serves for distribution of the air required for ventilation of the rear passenger compartment to the appropriate air outlets depending on the desired temperature in the rear passenger compartment.
The air guidance is dependent on various operating states such as:
- Normal operation
- Cooling mode
- Heating mode
