Rear air conditioning evaporator, location - GF83.50-P-2111-01S

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

The rear air conditioning evaporator (2) is located at the bottom in the rear air conditioning housing (1) below the armrest.

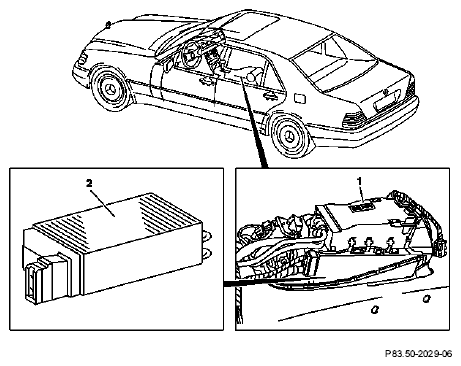

Fig 1: Identifying Rear Air Conditioning Evaporator And Rear Air Conditioning
G05440738Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
