In-car temperature sensor with aspirator blower, location - GF83.57-P-2100-01B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

The in-car temperature sensor with aspirator blower (B10/4) is located in the overhead control panel.

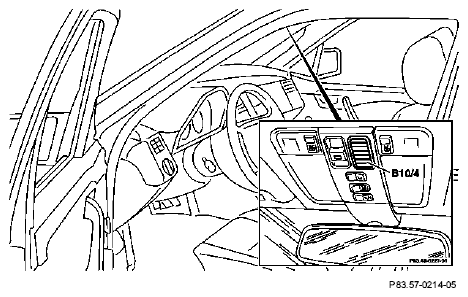

Fig 1: Identifying In-Car Temperature Sensor With Aspirator Blower Location In Overhead Control Panel
G05440752Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
