Heater core, location - GF83.20-P-2101-02S

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

The heater core (2) is located at the top in the rear A/C housing (1) below the arm rest.

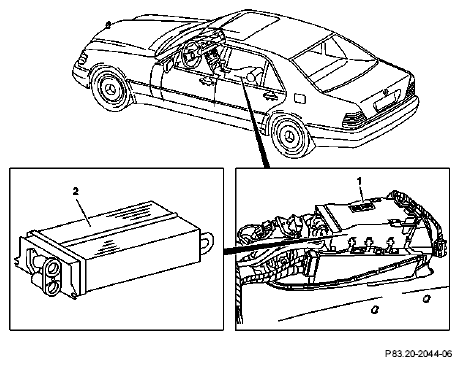

Fig 1: Identifying Heater Core Location At Top In Rear A/C Housing Below Arm Rest
G05440694Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
