Functions of the control and operating units for the rear air conditioning - GF83.50-P-2000S
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140 as of 1.9.95 with CODE (582) Rear air conditioning

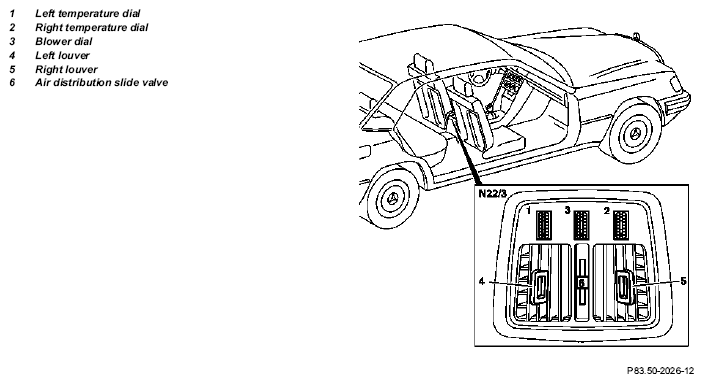

Fig 1: Identifying Temperature Dial, Blower Dial, Left And Right Louver And Air Distribution Slide Valve
Function
The rear air conditioning pushbutton control module (N22/3) allows the rear passengers to control the settings as desired such as:
- rear passenger compartment temperature setting by turning temperature dials (1, 2) separately for the left and right sides
- air quantity by turning blower dial (3)
- switching the blower ON/OFF by moving the blower dial to the catch position (3)
- Air distribution by moving the air distribution slide valve (6) between the rear footwell air outlets and rear compartment nozzle. The flow direction from the rear compartment nozzle can be adjusted with the louvers (4, 5).
| Rear A/C temperature dial, location/purpose/function | GF83.50-P-2114S | ||
| Rear A/C blower dial, location/purpose/function | GF83.50-P-2115S | ||
| Rear A/C air distribution slide valve, location/purpose/function | GF83.50-P-2116S |
