Expansion valve, location - GF83.40-P-2123-02A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Illustrated on model 210

The expansion valve (1) is located at the left rear in the engine compartment next to the brake servo-unit.

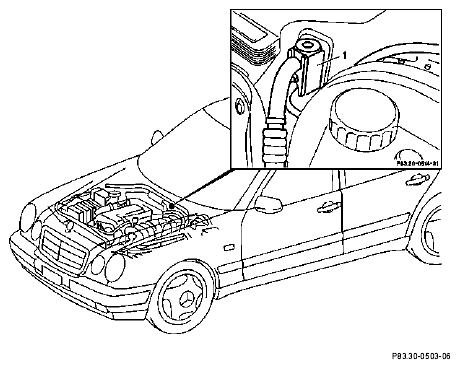

Fig 1: Identifying Expansion Valve Location
G04636057Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
