Automatic air conditioning (Auto A/C) arrangement of components - GF83.40-P-0001-01L

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

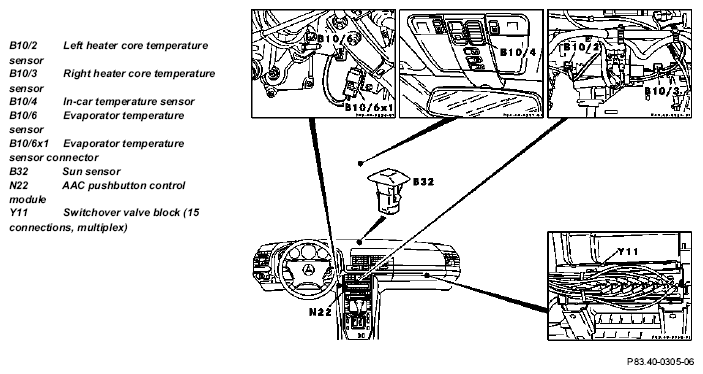

Arrangement of components in passenger compartment

Fig 1: Identifying Automatic Air Conditioning (Auto A/C) Arrangement Of Components In Passenger Compartment
G05440699Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

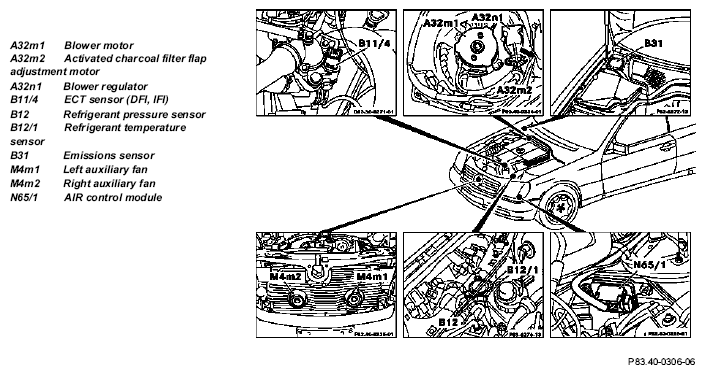

Arrangement of components in engine compartment

Fig 2: Identifying Automatic Air Conditioning (Auto A/C) Arrangement Of Components In Engine Compartment
G05440700Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
