Air ducts, location/purpose/design - GF83.10-P-2139B
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140 as of 1.9.95
Design
| Air ducts, location | GF83.10-P-2101-01B | ||

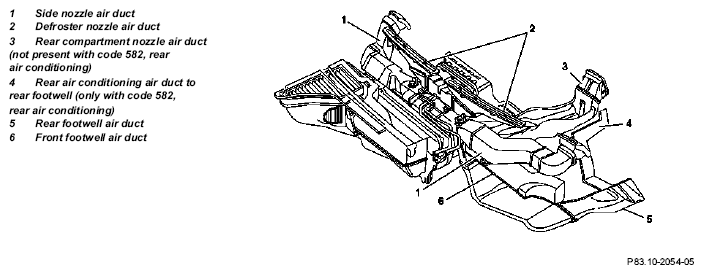

| Air ducts, purpose | The air ducts (1-6) guide the air required for ventilation of the vehicle from the automatic A/C housing to the air outlets in the vehicle passenger compartment. |
