Removal and installation of the rear window molding - ra67001400220x(0220)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

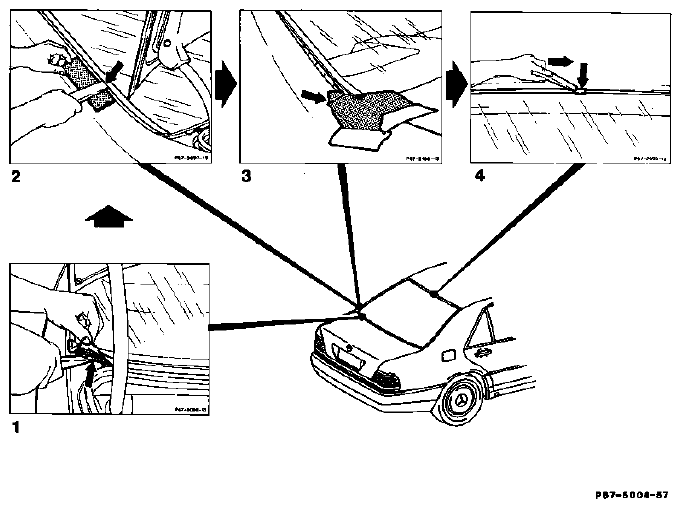

Fig 1: Removing/Installing Of Rear Window Molding

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Trunk lid	open.
Bottom molding (Fig 1)	press off with plastic wedge.
Side molding (Fig 1)	press off with plastic wedge and close trunk lid.
	Protect paint when pressing off.
Fender (Fig 1)	cover with rags.
Cover (Fig 1)	slide to side with plastic wedge and press off top molding.
Installation	install in opposite order.
