Lifting the vehicle onto the Celette straightening bench - ra60001400135x(0135)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Operation no. of operation texts and work units or standard texts and flat rates

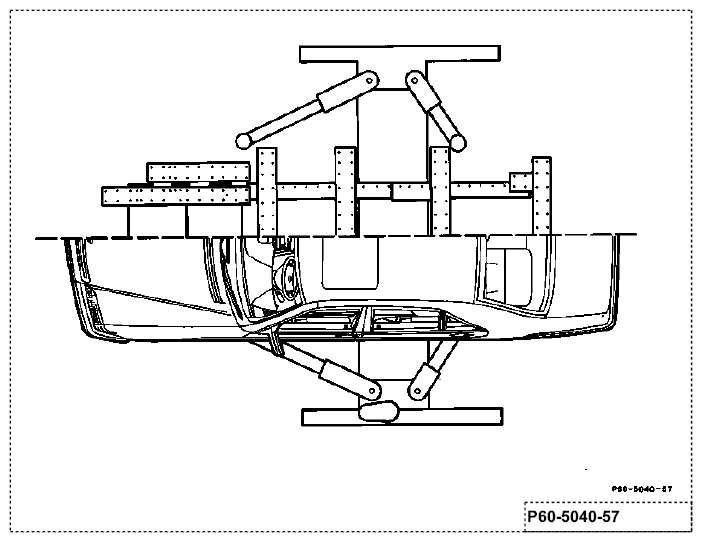

Fig 1: Arrangement Of Vehicle And Celette Straightening Bench Between Lifting Columns Of Two-Column Lift
Arrangement of vehicle and Celette straightening bench between lifting columns of two-column lift
NOTE:
An asymmetrical two-column lift is required to lift the vehicle on to the Celette straightening bench. The long arms of the two-column lift must point towards the front of the vehicle.
