Design, function description of the side portal - ra6000140b150x(0150)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 - B. Coupe
Preliminary work:
Operation no. of operation texts and work units or standard texts and flat rates:
Special tools
| Commercially available tools | Order no. | e.g. Company |
|---|---|---|
| Screwdriver attachment, 8 mm for Allen screws | Hazet D-5630 Remscheid | |
| Screwdriver attachment WAF 19 for hex. head bolts | 916 | |
| Reversible ratchet | 630 | |
| Double box wrench WAF 22-24 mm | ||
| Double box wrench WAF 17-19 mm | ||
| Compressed air ratchet, 1/2" | PRW 110 | Filder-Werkzeug D-7024 Filderstadt 1 |
WORKSHOP EQUIPMENT
| Straightening system Celette | Car-Bench |
| Straightening bench MUF 5, 7 or M8S | Straightening bench BT17 or Straightening lifting platform CB41 |
| Modular members 955.900 Auxiliary member 955.908 |
Universal cross member set A296/15 |
| New longitudinal members 955.904 (supplement set to 955.900) | 2 auxiliary cross members A2361 Straightening set 82410 |
| or Modular members 955.940 (new MB set) Straightening set 440.300 |
NOTE:
The side portal can only be used in combination with a straightening system approved by MB and the associated straitening tool set. Before attaching the side portal the vehicle must be aligned precisely according to the locating holes and mounted tightly on the straightening set.
The following function description also applies by analogy for the Car-Bench straightening system.
- Use on the Celette straightening system
for repairs to A- and B-pillars

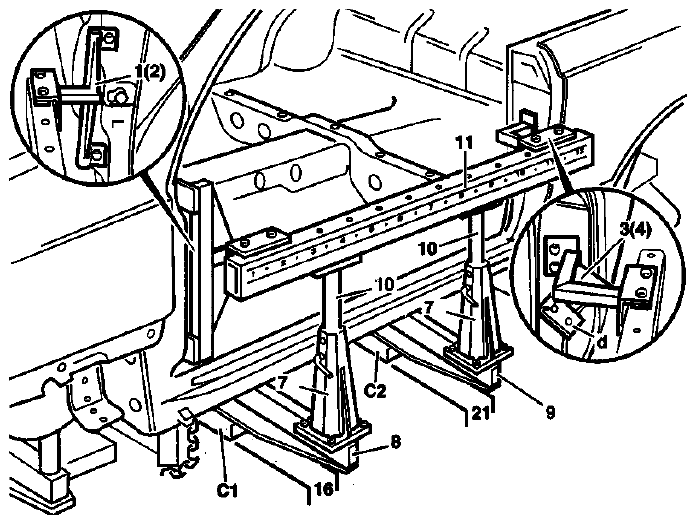

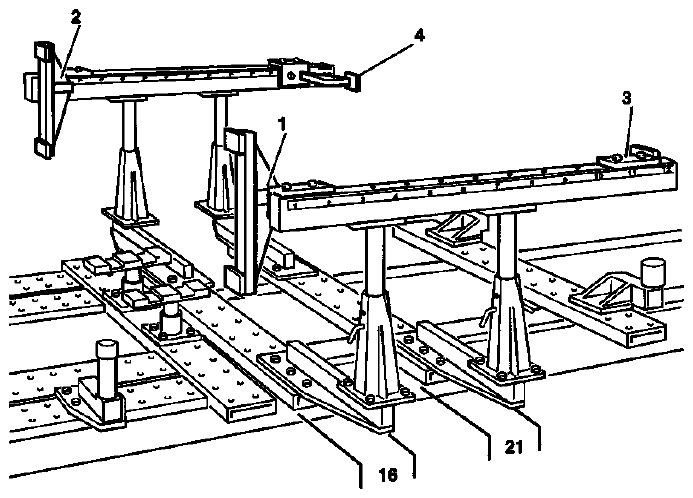

Set-up sequence
| C1, C2 16 and 21 | Modular members position on grid fields |
| 8, 9 members | Side extensions install on modular |
| 7 extensions (8,9) | Multi-Z elements MZ 260 install on side (arrow pointing forward) |
| 10 (bottom hole) | Cylindrical mounts insert into MZ260 (7) |
| 11 mounts (10) with | Portal longitudinal members fasten to cylindrical |
| 1, (2) longitudinal member | M12 x 35 bolts Mount for left (right) A-pillar fasten on portal |
| 3, (4) longitudinal member | (11) with M12 x 45 bolts Mount for left (right) B-pillar fasten to portal |
| d | (11) with M12 x 45 bolts Spacer plate for locating wheelhouse insert |
