Cleaning the water drains - wh6030pkw0000x(6030)

Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85

Revision: Model 140 added.

• Upper fill-in well

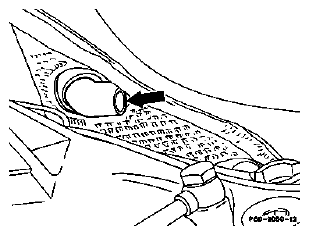

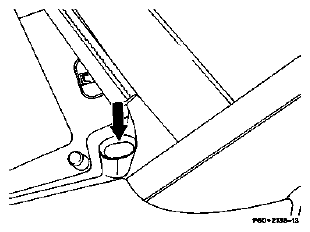

  Fig 1: Locating Water Drains - Upper Fill-In Well

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Lower fill-in well

  Models 107, 123, 124, 126, 201

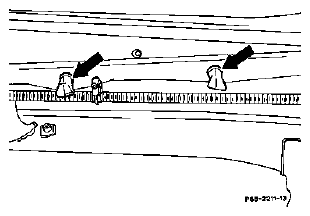

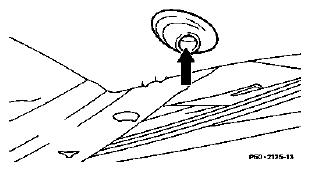

  Fig 2: Locating Water Drains - Lower Fill-In Well (Models 107, 123, 124, 126, 201)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Rear fender

  Models 107, 123, 124, 126, 140, 201

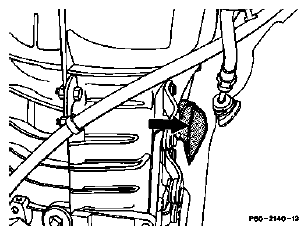

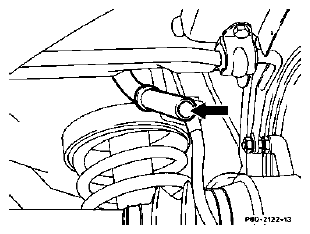

  Fig 3: Locating Water Drains - Rear Fender (Models 107, 123, 124, 126, 140, 201)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Rear fender
• Tank filler well, below

  Model 129

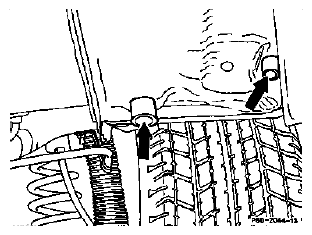

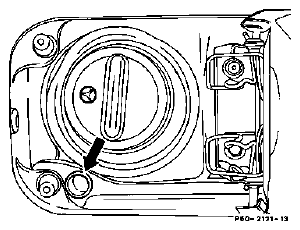

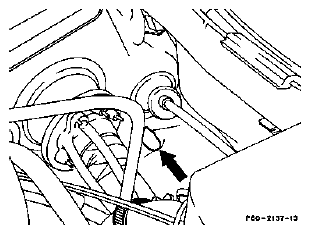

  Fig 4: Locating Water Drains - Tank filler well, below (Model 129)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Spare wheel well

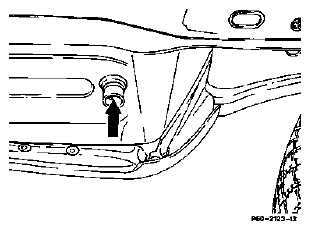

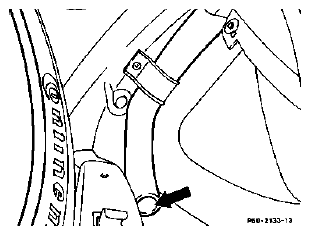

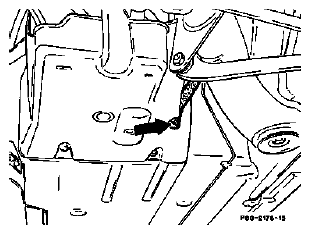

  Fig 5: Locating Water Drains - Spare Wheel Well

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Side member

  Models 123, 124, 126, 129, 140, 201

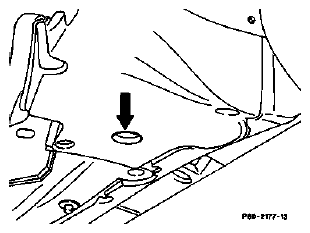

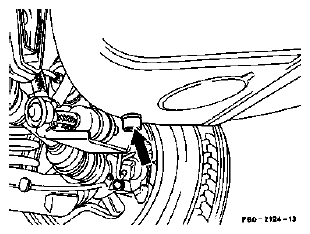

  Fig 6: Locating Water Drains - Side Member (Models 123, 124, 126, 129, 140, 201)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Side member front

  Model 107

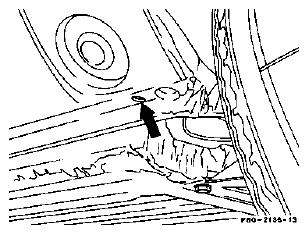

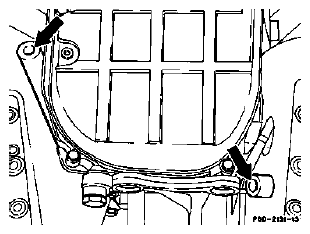

  Fig 7: Locating Water Drains - Side Member Front (Model 107)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Side member rear

  Model 107

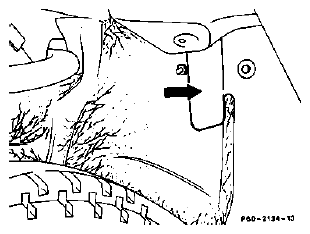

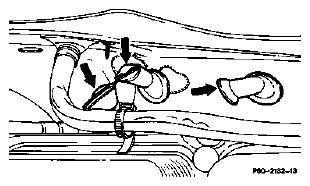

  Fig 8: Locating Water Drains - Side Member Rear (Model 107)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

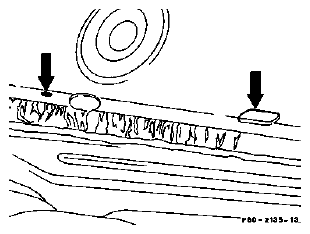

• Side member connecting range front wall pillar

  Model 107

  Fig 9: Locating Water Drains - Side Member Connecting Range Front Wall Pillar (Model 107)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Engine compartment top

  Model 123

  Fig 10: Locating Water Drains - Engine Compartment Top (Model 123)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Engine compartment below

  Model 123

  Fig 11: Locating Water Drains - Engine Compartment Below (Model 123)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Water box

  Model 123

  Fig 12: Locating Water Drains - Water Box (Model 123)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

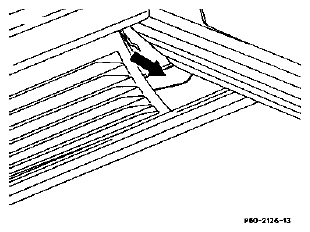

• Drain bores in cover on air intake

  Model 126

  Fig 13: Locating Water Drains - Drain Bores In Cover On Air Intake (Model 126)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Water box, outer

  Model 126

  Fig 14: Locating Water Drains - Water Box, Outer (Model 126)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Water box, center

  Model 126

  Fig 15: Locating Water Drains - Water Box, Center (Model 126)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

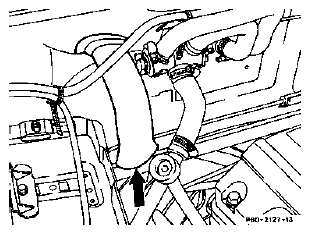

• Air conditioning

  Models 124, 126, 129, 140

  Fig 16: Locating Water Drains - Air Conditioning (Models 124, 126, 129, 140)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

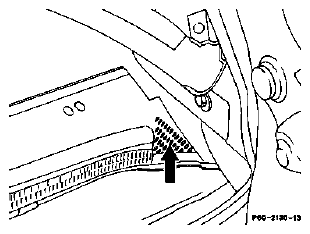

• Heating and air conditioning (in transmission tunnel)

  Models 124, 126, 129,140

  Models 124, 126, 129,140

  Models 107, 123

  Fig 17: Locating Water Drains - Heating And Air Conditioning (In Transmission Tunnel) (Models 124, 126, 129,140)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Sliding roof front

  All models

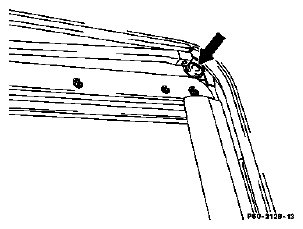

  Fig 18: Locating Water Drains - Sliding Roof Front (All Models)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

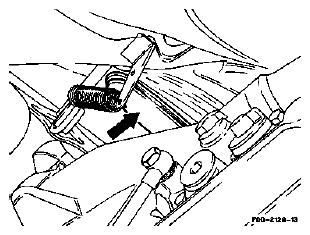

• Front wall pillar top

  Models 124, 129, 140, 201

  Fig 19: Locating Water Drains - Front Wall Pillar Top (Models 124, 129, 140, 201)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

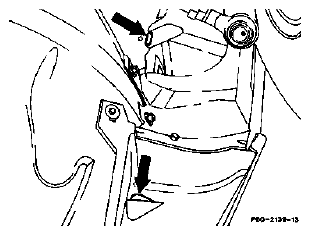

• Front wall pillar below (arrow top)
• Units compartment (arrow below)

  Models 124, 201

  Fig 20: Locating Water Drains - Front Wall Pillar Below (Models 124, 201)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Water box

  Models 124, 201

  Fig 21: Locating Water Drains - Water Box (Models 124, 201)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Water box

  Model 129

  Fig 22: Locating Water Drains - Water Box (Model 129)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Water box

  Model 140

  Fig 23: Locating Water Drains - Water Box (Model 140)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

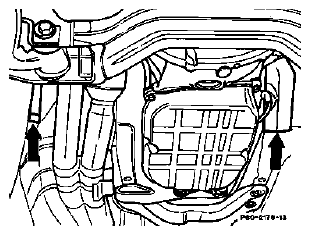

• Lower fill-in well

  Model 140

  Fig 24: Locating Water Drains - Lower Fill-In Well (Lower Fill-In Well)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Front wall pillar bottom

  Models 129, 140

  Fig 25: Locating Water Drains - Front Wall Pillar Bottom (Models 129, 140)

  Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
• Rear air conditioning system

Model 140

Fig 26: Locating Water Drains - Rear Air Conditioning System (Model 140)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
