Removing, installing folding key in remote control key - AR80.35-P-4220G
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129 as of 1.6.97
MODEL 140 as of 1.6.97
MODEL 163
MODEL 170
with CODE (491) USA version
with CODE (498) Japanese version
MODEL 170 as of 1.6.97
| Removal, installation | |||
|---|---|---|---|

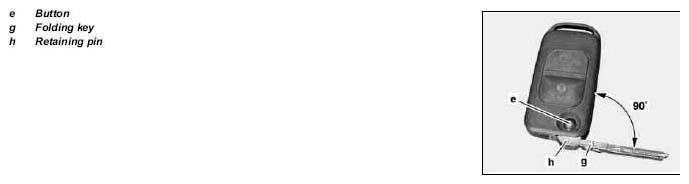

| 1 | Press button (e) | ||
| 2 | Swing folding key (g) out approx. 90° | ||
| 3 | Press out retaining pin (h) with 1.5 mm dia. punch | ||
| 4 | Pull out folding key (g) | ||
| 5 | Reinstall in opposite order |
