Removing and installing trunk lid actuator - ra80001400240x(0240)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Central Locking System Model 140
Operation no. of operation texts and work units or standard texts and flat rates; 80-3125

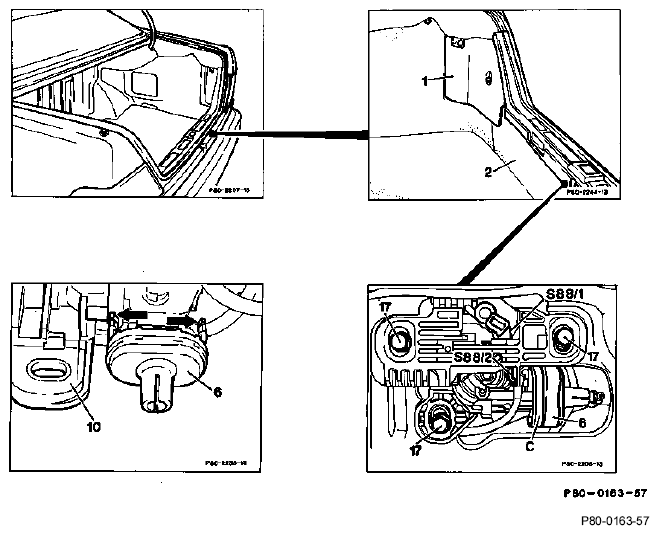

| Cover (1) of right and left tail lamps | open, close. |
| Covering of rear center assembly (2) | remove, install. |
| Electric cables | disconnect, connect. |
| Retaining bolts (17) of trunk lid lock | unscrew, screw on. |
| Lock (10) | remove. |
| Pneumatic line | lever off with open-end wrench (width across flats 7), press on. |
| Expand locking clip (arrows) and | detach, attach pneumatic actuator (6) with control rod. |
| Actuator (6) | check pneumatic function, diagnosis manual body, volume 1. |
| Actuator (6) | install in reverse sequence. |
