Removing and installing rear door actuator - ra80001400220x(0220)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Central Locking System Model 140
Operation no. of operation texts and work units or standard texts and flat rates 80-3065
| Door trim panel | remove (72-101). |

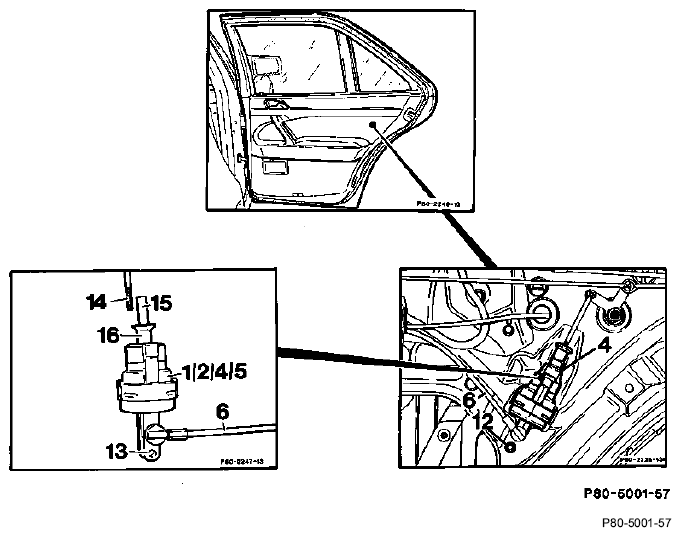

| Pneumatic line (6) | lever off. |
| Sliding sleeve (16) | push back. |
| Shift rod (14) | press out. |
| Bolt (12) | unscrew and remove. |
| Actuator | unhook. |
| Actuator | check pneumatic function, diagnosis manual body, volume 1. |
| Actuator | move to installation position. Push sliding sleeve (16) fully back and pull out shift rod retainer (15) until it locks. |
| Actuator | install in reverse sequence. |
