Removing and installing pneumatic system equipment (A37, A37/1) - ra80001400270x(0270)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Central Locking System Model 140
Operation no. of operation texts and work units or standard texts and flat rates 80-1552

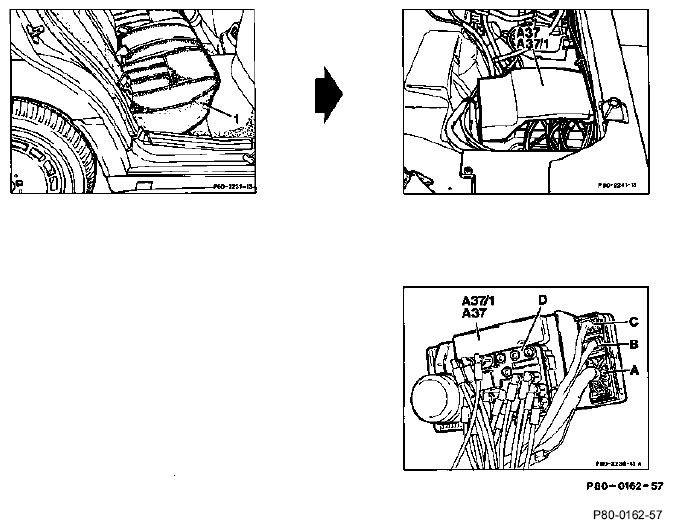

| Rear seat cushion (1) | remove. |
| Foam cube | pull from recess and open. |
| Pneumatic system equipment (A37, A37/1) | take out. |
| Pneumatic lines or electric cables | disconnect |
| Pneumatic system equipment (A37, A37/1) | check electrical functions or pneumatic functions, diagnosis manual body, volume 1. |
| Pneumatic system equipment (A37, A37/1) | install in reverse sequence. |
