Removing and installing front lock convenience switches (S86/1, S87/1) - ra80001400250x(0250)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Central Locking System Model 140

Previous work:

Remove front left/right door lock (REMOVAL AND INSTALLATION OF THE DRIVER'S DOOR LOCK )

Operation no. of operation texts and work units or standard texts and flat rates:

A. Removal

NOTE:

Front lock convenience switches have been discontinued with introduction of drive authorization system stage 2, except

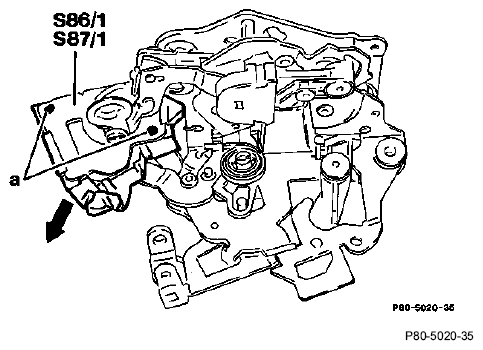

Fig 1: Identifying Lock Convenience Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Catches (a)	press in.
Lock convenience switch (S86/1, S87/1)	pull off of lock unit in direction of arrow.

B. Installation

NOTE: Front lock convenience switches have been discontinued with introduction of drive authorization system stage 2, except

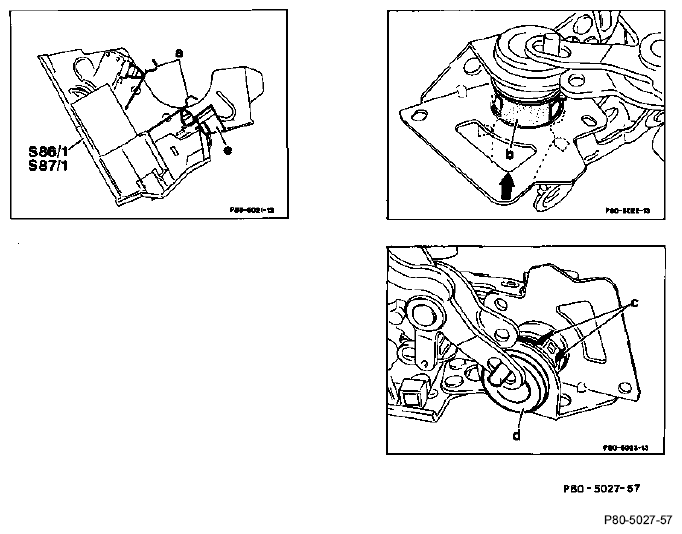

Fig 2: Identifying Plug Lock Convenience Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Plug lock convenience switch (S86/1, S87/1) onto lock unit	the lock springs (a) of the two lock convenience switches must snap into place in the lock gate recesses (b). It is also important to ensure that the ends of the return spring (c) of the lock (d) surround the locating lug (e) of the lock convenience switch (S86/1, S87/1).
	After installation always perform mechanical (lock return spring) and electrical (lock convenience switch) operational check.
