Remote trunk release (RTR), location of pneumatic components - GF80.20-P-0006-04B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 as of 06/97

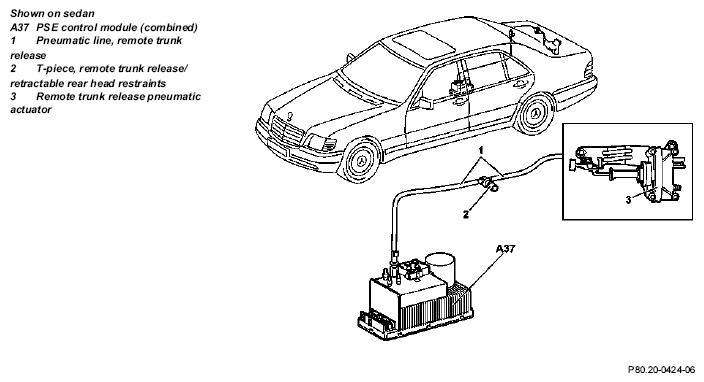

Fig 1: Identifying Remote Trunk Release, Location Of Pneumatic Components
G05440417Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
