Radio frequency locking/remote central locking (RFL/RCL), location of components - GF80.30-P-0005-01B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 as of 1.6.97

Model 140 with engine control module (HFM-SFI)

(Sedan shown)

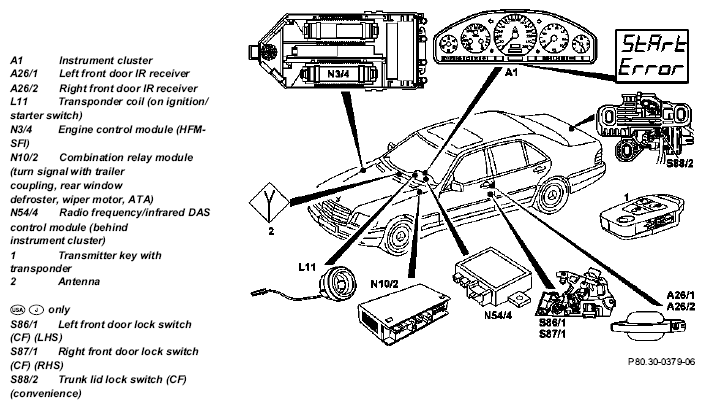

Fig 1: Identifying Radio Frequency Locking/Remote Central Locking Components (Model 140 With Engine Control Module)
G05440422Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
