Remote central locking (RCL), interlinkage of components - GF80.30-P-0004-02A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Models 129, 140

Models 129/140

(Illustrated on model 140 sedan)

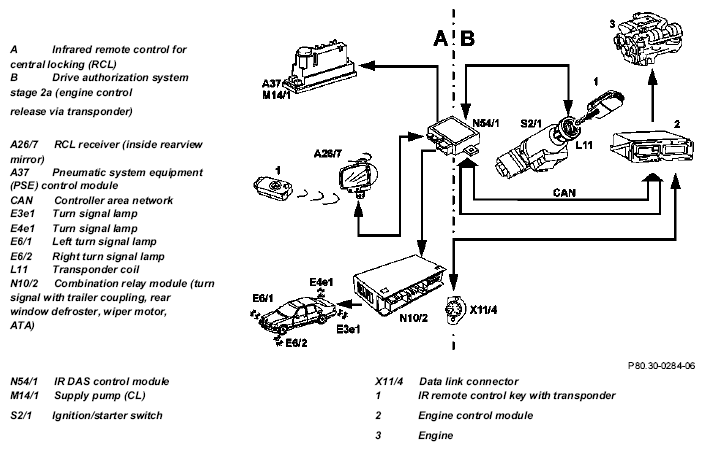

Fig 1: Interlinkage Components Communication Diagram (Illustrated On Model 140,129 Sedan)
G05440421Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
