Central locking (CL), location of electric components - GF80.20-P-0005-02B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 as of 06/97

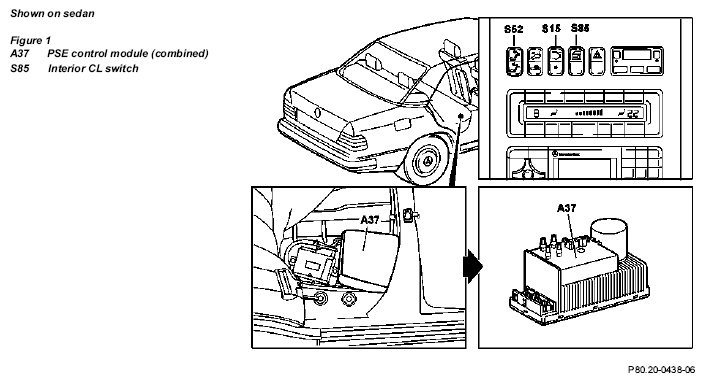

Fig 1: Identifying PSE Control Module (Combined) And Interior CL Switch
G05440407Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

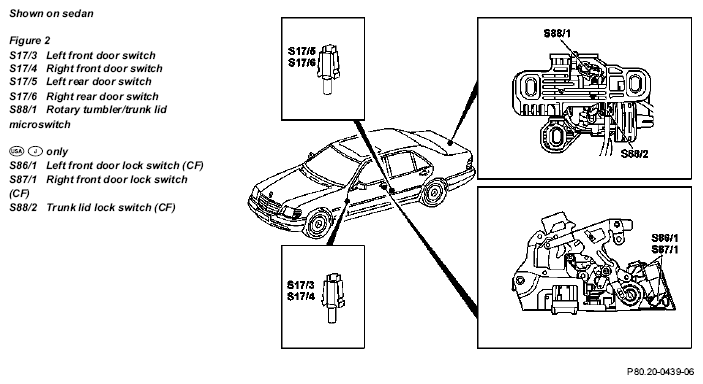

Fig 2: Identifying Left/Right Front Door Switch And Left/Right Rear Door Switch
G05440408Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
