Central locking (CL), PSE control module, location of electric components - GF80.20-P-0005-05B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140 as of 06/97

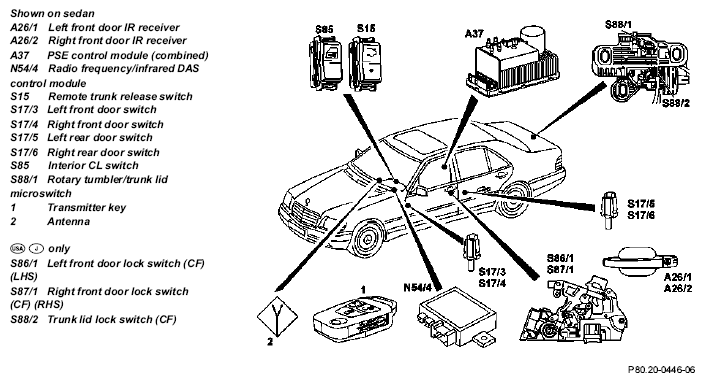

Fig 1: Identifying Central Locking (CL), PSE Control Module, Location Of Electric Components
G05440412Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
