Connecting and disconnecting tester at brake booster - AR43.10-P-0024-01A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
| Measurement connection for checking non-return valve or brake booster | With screwed connection on brake booster | WF58.50-P-4310-01A |
| Number | Designation | Model 210 | |
|---|---|---|---|
| BA43.10-P-1001-01A | Vacuum line on brake booster | Nm | 30 |
| Number | Designation | Model 129 up to 09/89 | Model 129 as of 10/89 | Model 140 | Model 202 | |
|---|---|---|---|---|---|---|
| BA43.10-P-1001-01A | Vacuum line on brake booster | Nm | 30 | 30 | 30 | 30 |

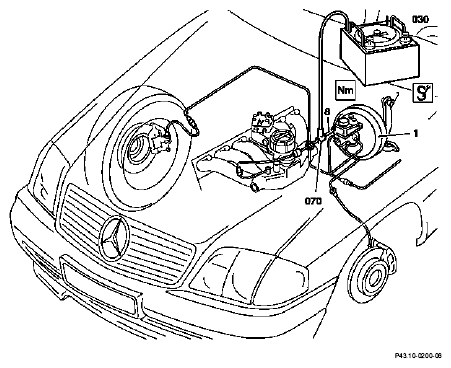

- Unscrew or pull off vacuum line (8) at brake booster (1).
- Connect measurement connection for testing the non-return valve or brake booster (070) between brake booster (1) and vacuum line (8).
Use shop-made tool for screwed connection.
Use special tool for plug-type connection.
- Connect tester (030) to measurement connection (070).
