Removing and installing side airbag sensor - AR91.60-P-0710D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140 with CODE (292) left and right front side airbag

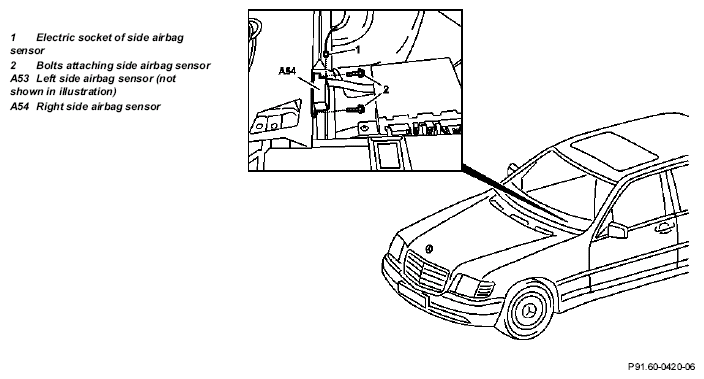

Illustration shows right side of vehicle
| Removing, installing | |||
|---|---|---|---|
1 |
Disconnect battery | Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors Model 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0002-01B |
| 2 | Withdraw ignition key | ||
| 3 | Remove entrance plate | ||
| 4 | Turn over floor covering to the front | ||
| 5 | Unplug electric socket (1) | ||
| 6 | Unscrew mounting screws (2) | ||
| 7 | Take out side airbag sensor (A53 or A54) | ||
| 8 | Install in the reverse order | ||
| 9 | Carry out diagnosis | see Diagnosis Manual |
