Removing and installing side airbag in front door - AR91.60-P-0690D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140 with CODE (292) Front left and right side airbags
| Removal, installation | |||
|---|---|---|---|
| Injury hazard when testing or repairing airbags or emergency tensioning retractors. | Store airbags with opening surface pointing up, do not expose to temperatures above 100°C. Interrupt electric circuit when working on these units. | AS91.00-Z-0001-01A | |
| Important instructions for performing repair, body work and welding on vehicles with airbags and emergency tensioning retractors | Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0002-01B | |
| Evaluation of airbags and emergency tensioning retractors on accident vehicles | Models 129 as of 1.7.93, 163, 168, 170, 202 as of 1.7.93, 208, 210, 463, 638, 901, 902, 903, 904 | AH91.00-P-0006-01B | |
| Legal regulations on handling and storing airbags and emergency tensioning retractors | Models 124, 129, 140, 163, 168, 170, 202, 208, 210,314, 316, 318, 463, 638, 901, 902, 903, 904, 950, 952, 953, 954 | AH91.00-P-0004-01A | |
| Important instructions on disposal of airbags and emergency tensioning retractors | All models | OS91.00-P-0001-01A | |
| 1 | Disconnect battery | ||
| 2 | Remove ignition key | ||
| 3 | Remove door liner on front door | ra72001400100x | |

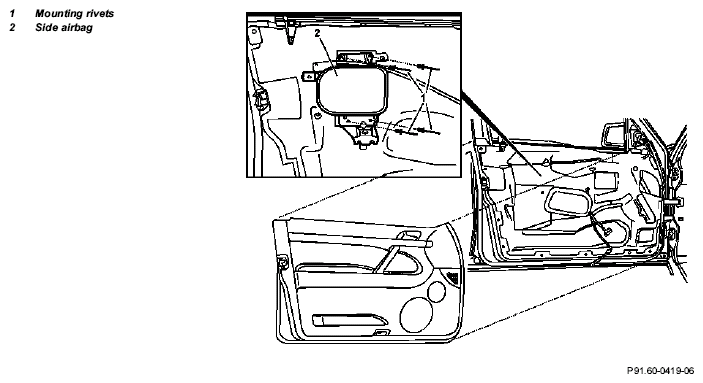

| 4 | Drill out mounting rivets (1) for side airbag | ||
| 5 | Remove side airbag | ||
| 6 | Disconnect electrical connector | ||
| 7 | Reinstall in opposite order | ||
| 8 | Perform diagnosis | See diagnosis manual |
