Removal, installation and replacement of pompadour pocket on rear panel of front seat backrest - ra91001400192x(0192)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Tensioner removed (Removal and installation of rear panel on front seat back rest )

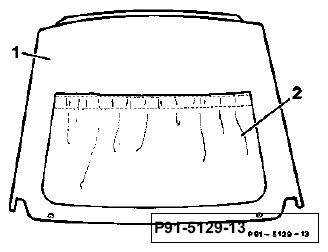

| Rear panel (1) | lay down with cloth side on a suitable surface. |

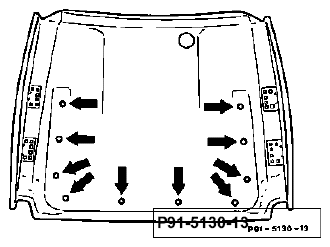

| Plastic weld beads (arrows) | separate with chisel. |
| Pompadour pocket (2) | remove from tensioner (1). |
| Pompadour pocket (2) | place on rear panel (1) and secure to rear panel with screw, part no. 201 990 07 36. |
NOTE:
When replacing the pompadour pocket (2) shorten the plastic weld bolts to 4 mm overall length in advance, e.g. grinding off.
