Removal and installation of seat belt extender microswitch complete with cable - ra91001400515x(0515)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Seat belt extender removed (Removal and installation of complete seat belt extender )

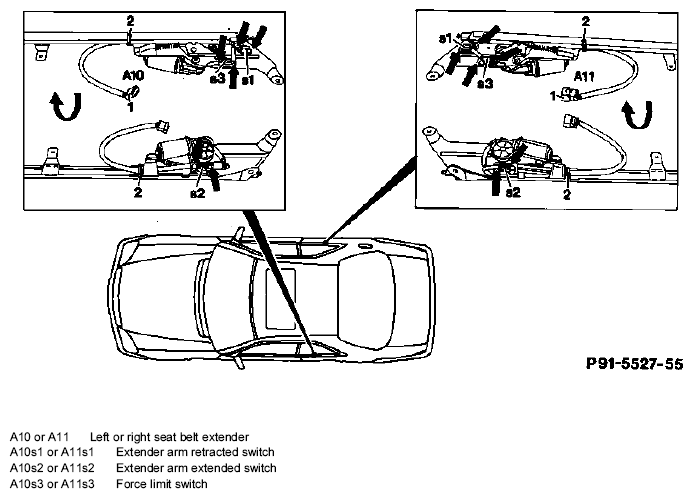

| Plug connection (1) to control unit (N42) | disconnect, reconnect. |
| Cable strap (2) | open, close. |
| Flat plug connectors on motor | disconnect, reconnect. |
| Screws (arrows) for microswitch | screw out, screw in. |
|
NOTE:
Secure mounting screws for microswitch with securing paint.
|
