Removal and installation of rear seat cushion cover - ra91001400185x(0185)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Rear seat cushion removed (Removal and installation of rear seat and backrest )

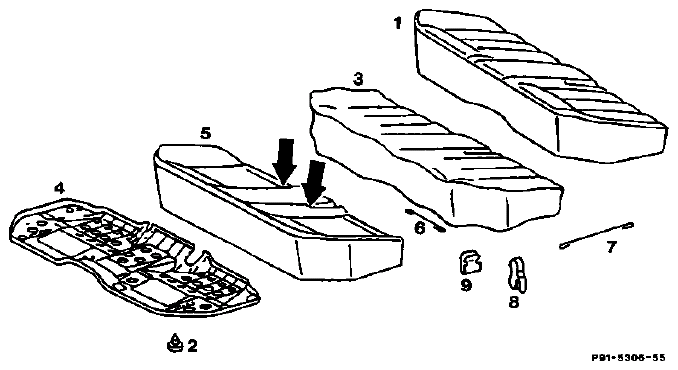

| Rear seat cushion (1) | lay down with the upper side on a suitable surface. |
| Plastic needle (2) for material tensioning strips on the underside of the cushion frame | detach, when installing, also use clips (9) (16 pieces). |
| Cover (3) with support (5) | remove from cushion frame (4). |
| Fleece insert between support (5) and cushion frame (4) | remove. |
| Climbing nettles | detach from the support (5). When installing, align cover and fix. |
| Transverse loosening devices on cover | release, by unhooking plastic hooks (8) on wire bracket (6) on support (5). Follow installation note! |
| Longitudinal loosening devices on cover (3) | slacken, by unhooking plastic hooks (8) on wire bracket (7) in support (5). Follow installation note! |
| Cover (3) | remove from support (5). When installing, pull material tightening strips through opening in the support (arrows). |
| Install | in opposite order. |
| Installation note | |
| In order to avoid pressure points due to the longitudinal and transverse loosening wires, the wires must be aligned when hooked in so that they lie in the loosening channels of the support (5). |
