Removal and installation of rear head restraints - ra91001400177x(0177)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140

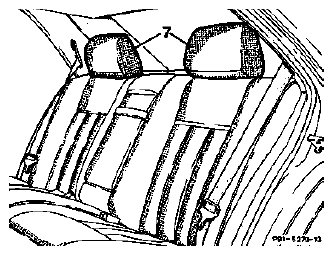

| Head restraints (7) | raise. |
| Cover (4) | detach from head restraint clip and remove. |

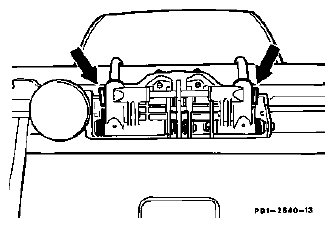

| Both locking levers (arrows, Fig 3) | press and simultaneously withdraw the head restraints rearwards. |
| Head restraints (7) | remove. |

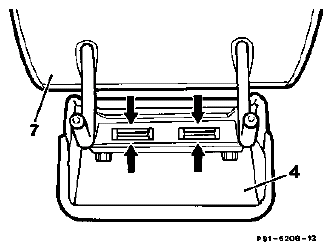

| Reinforcement plate (arrows, Fig 4) on head restraints | align. |

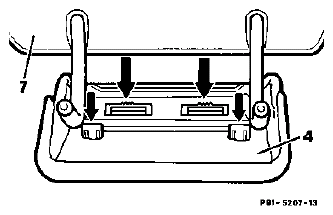

| Cover (4) with the plastic angle | lay down on reinforcement plate and fix cover (4) in the reinforcement plate with the lower locking lugs (center arrows, Fig 5). |
| Head restraints together with the cover (4) | insert in the head restraint mechanism while putting the cover (4) under the rear shelf. |
| Cover (4) and head restraint (7) | engage or lock by means of a powerful blow with the ball of the thumb. |
| Cover (4) | align by shifting laterally at the rear shelf. |
| Function check for lowering of head restraint | perform. |
