Removal and installation of front passenger's seat cushion - ra91001400114x(0114)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Front passenger seat removed (Removal and installation of passenger's seat )

Cover on seat guide rails removed

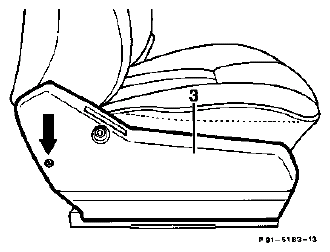

Fig 1: Identifying Front Passenger's Seat Cushion Components (1 Of 6)

G05441210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

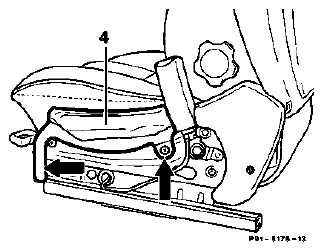

Fig 2: Identifying Front Passenger's Seat Cushion Components (2 Of 6)

G05441211

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

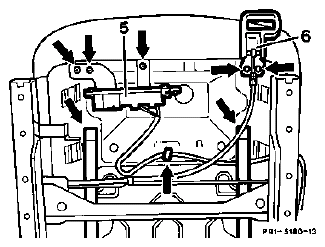

Fig 3: Identifying Front Passenger's Seat Cushion Components (3 Of 6)

G05441212

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

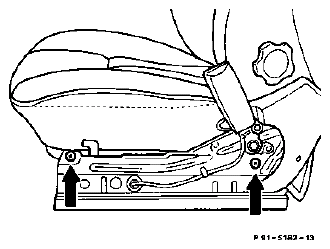

Fig 4: Identifying Front Passenger's Seat Cushion Components (4 Of 6)

G05441213

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

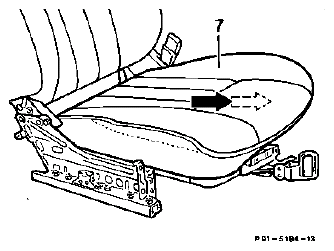

Fig 5: Identifying Front Passenger's Seat Cushion Components (5 Of 6)

G05441214

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

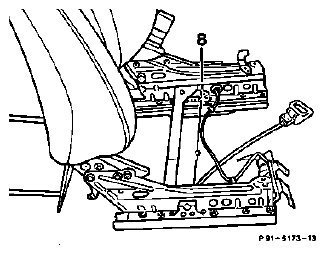

Fig 6: Identifying Front Passenger's Seat Cushion Components (6 Of 6)

G05441215

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw (arrow) on panelling (3)	screw out and remove panelling (3) to the front.
Screw (arrow) on finisher (4)	screw out and remove finisher (4) to the front.
Terminal strip (5) and handle (6) on cushion frame	screw out.
Rubber tensioners (arrows) of cloth apron	detach.
Cable to belt buckle on cushion frame	unclip (2 clips).
Screws on left and right of seat frame	screw out (4 pieces) Nm: 10.
Seat cushion (7)	remove toward front.
Reinstall	in opposite order.

Removal, installation

Screw out screw (arrow) on panelling (3).
Remove panelling (3) toward front.

Fig 7: Locating Panelling Screw
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

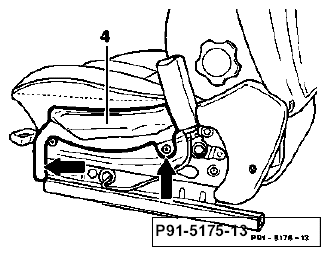

Screw out screw (arrow at rear) on finisher (4) and remove finisher toward front.

Fig 8: Locating Screw On Finisher
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

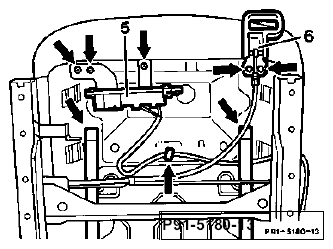

Unscrew terminal strip (5) and handle (6) from cushion frame.
Unhook rubber tensioners (arrows) on cushion frame.
Expose cable to belt buckle (2 Ω clips).

Fig 9: Locating Terminal Strip And Handle Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

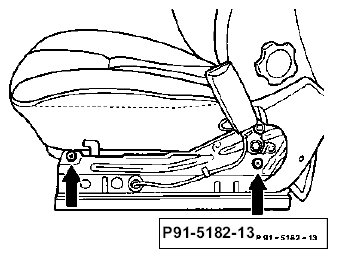

Screw out screws (arrows).
Tightening torque: 10 Nm.

Fig 10: Locating Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

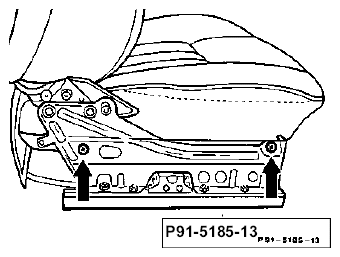

Screw out screws (arrows).
Tightening torque: 10 Nm.

Fig 11: Locating Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

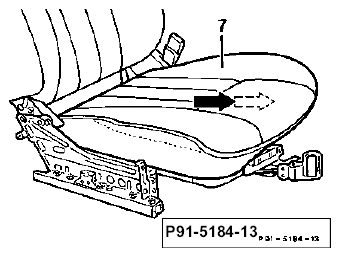

Remove seat cushion (7) from seat frame (8) toward front.
Reinstall in opposite order.

Fig 12: Removing Seat Cushion From Seat Frame Toward Front
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

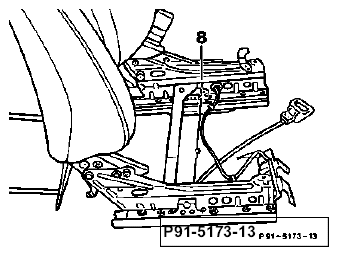

Fig 13: Identifying Front Passenger Seat Cushion Frame
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Front passenger seat cushion frame removed
