Removal and installation of front passenger's seat backrest - ra91001400116x(0116)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Front passenger seat removed (Removal and installation of passenger's seat )

Cover on seat guide rails removed

Fig 1: Identifying Front Passenger's Seat Backrest Components (1 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Front Passenger's Seat Backrest Components (2 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Front Passenger's Seat Backrest Components (3 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Front Passenger's Seat Backrest Components (4 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Front Passenger's Seat Backrest Components (5 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Front Passenger's Seat Backrest Components (6 Of 6)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw (arrow) on panelling (3)	screw out and remove panelling (3) toward front.
Screws (arrows) on panelling (4)	screw out and remove panelling (4) upwards and to the rear.
Rubber tensioners (arrows) of cloth apron (5)	unhook.
Screws on left and right of backrest fitting	screw out (4 pieces) WAF 13 or internal Torx T50, Nm: 50
Backrest (1)	remove from seat frame.
Reinstall	in opposite order.

Installation, removal

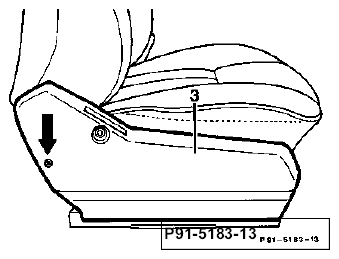

Screw out screw (arrow) on panelling (3) and remove panelling (3) toward front.

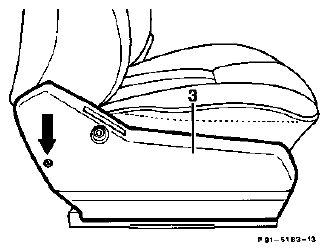

Fig 7: Locating Screw On Panelling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

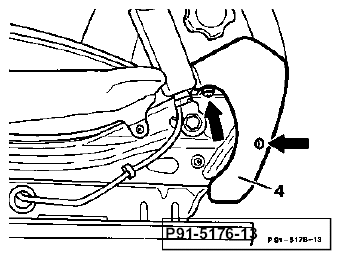

Screw out screws (arrows) on panelling (4) and remove panelling (4) upwards and to the rear.

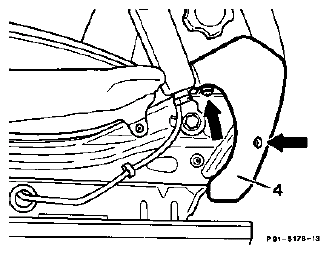

Fig 8: Locating Screws On Panelling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Unhook rubber tensioners (arrows) and drive back rubber apron (5).

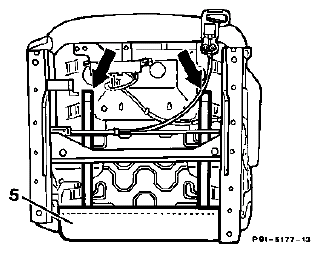

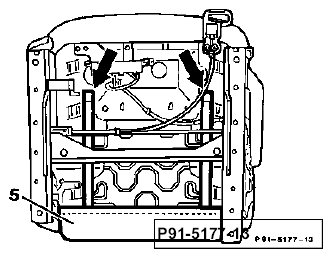

Fig 9: Locating Rubber Tensioners
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (arrows) on backrest fitting (WAF 13 or internal Torx T50, Nm: 50).

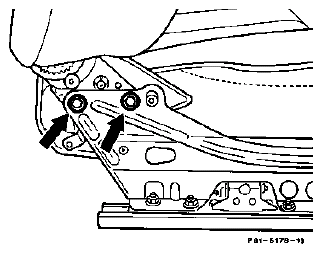

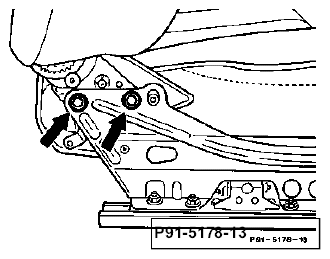

Fig 10: Locating Screws On Backrest Fitting
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (arrows).

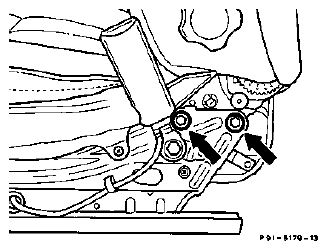

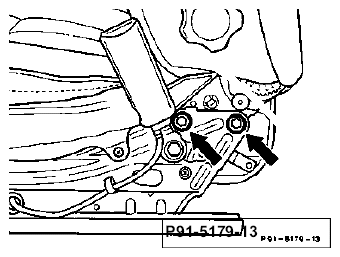

Fig 11: Locating Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove backrest (1) from seat frame upwards.
Reinstall in opposite order.

Fig 12: Identifying Backrest

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
