Removal and installation of element for lowering rear head restraint - ra91001400400x(0400)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
| Rear backrest | remove, install (91-170). |

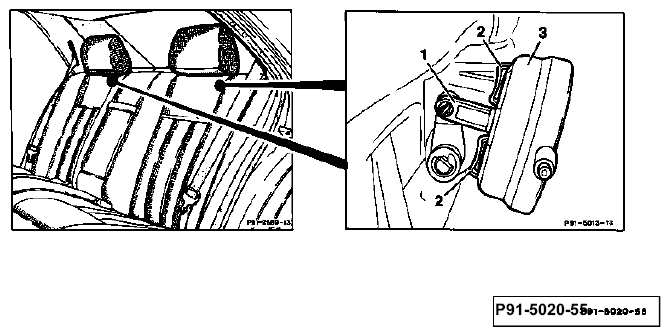

| Actuating rod (1) | unclip, clip in. |
| Press catch bracket (2) apart and | unhook pneumatic element (3), hook in. |
| Pneumatic function of element | check. Diagnosis Manual, Body, Volume 1. |
| Element (3) | reinstall in opposite order. |
