Removal and installation of driver's seat backrest cover - ra91001400182x(0182)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Driver's seat backrest removed (Removal and installation of driver's seat backrest )

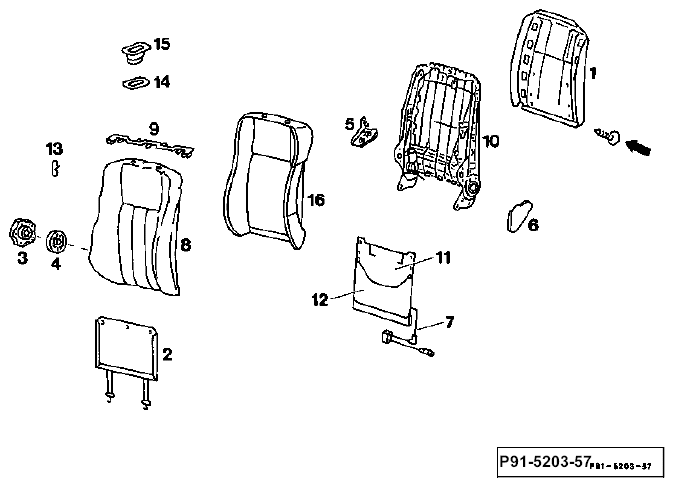

Fig 1: Identifying Cover On Driver's Seat Backrest Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Driver's seat backrest	place on a suitable base.
Screws (arrows)	screw out.
Rear panel of backrest (1)	remove.
Cloth apron	unhook and remove.
Adjusting wheel (3) and lower surround (4)	detach. Observe installation note!
Panelling (5)	remove.
Panelling (6)	remove and pull out lead (7) on panelling (6).
Cover (8)	detach all round.
Additional lower cloth loosening	remove from the plug-in fold.
Transverse loosening device (9)	detach at the top and remove.
Backrest frame (10)	remove from rubberized hair support (16).
Plastic hooks (13) on transverse and longitudinal loosening device	unhook.
Lateral nettle strips	detach.
Plastic ring (14) on inner head restraint eye (15)	separate and remove.
Head restraint eyes (15)	remove.
Cover (8)	remove from rubberized hair mat (16).
Reinstall	in reverse order.

Installation note

Adjusting wheel (3) must be replaced after each disassembly.

Removal, installation

Place driver's seat backrest on a suitable base and remove screws (arrows).
Remove rear panel (1).

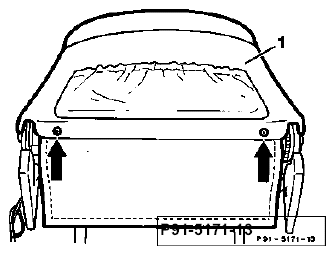

Fig 2: Identifying Rear Panel With Screws
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

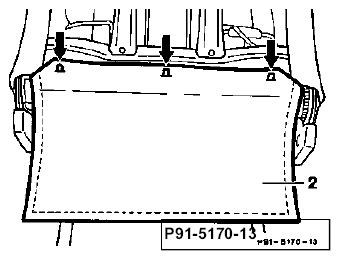

Unhook cloth apron (2) (arrows) and remove.

Fig 3: Locating Unhook Cloth Apron
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

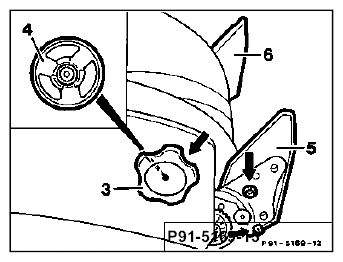

Detach adjusting wheel (3) and below surround (4).
Remove panelling (5).

Fig 4: Locating Adjusting Wheel
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

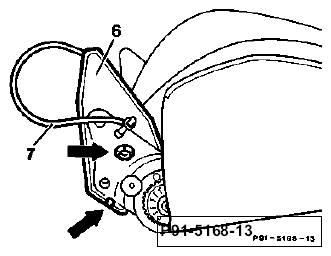

Remove panelling (6) and pull out cable (7) from panelling (6).

Fig 5: Identifying Cable And Panelling
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Unhook cover (8) all around (arrows).

Fig 6: Identifying Cover
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Pull out additional length of fabric clamped into groove (arrows).

Fig 7: Pulling Out Additional Length Of Fabric Clamped Into Groove
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

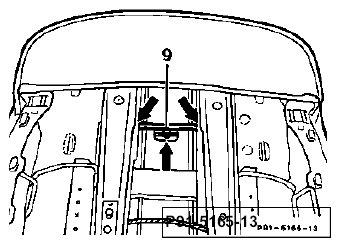

Unhook transverse clamping bracket (9) at the top and remove (arrows).

Fig 8: Locating Transverse Clamping Bracket
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove backrest frame from rubberized hair mat.

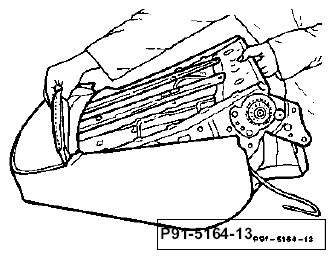

Fig 9: Removing Backrest Frame From Rubberized Hair Mat
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Detach plastic hooks from transverse and longitudinal clamping (arrow).
Detach side nettle strips from rubberized hair mat.

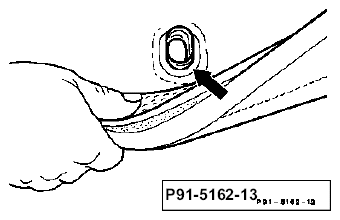

Fig 10: Locating Plastic Hooks
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Separate plastic ring on inner head restraint eye (arrows) and remove head restraint eye.
Remove cover from rubberized hair mat.
Reinstall in reverse order.

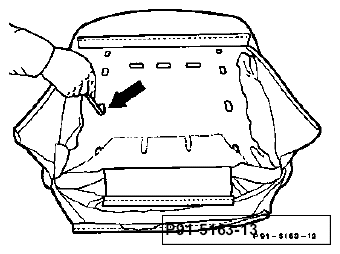

Fig 11: Locating Plastic Ring
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

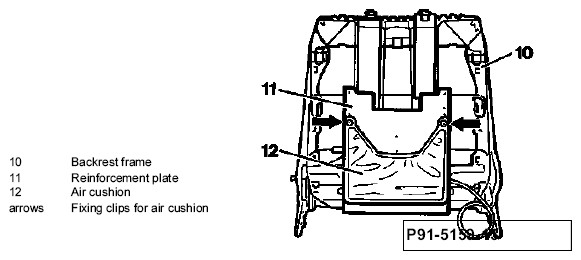

Fig 12: Identifying Backrest Frame, Reinforcement Plate, Air Cushion With Clips
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Driver's seat backrest - ready to install

Fig 13: Identifying Driver's Seat Backrest

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
