Removal and installation of driver's seat adjuster - ra91001400145x(0145)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140

Preliminary work:

Seat cushion on driver's seat and driver's seat backrest

removed (Removal and installation of driver's seat cushion and Removal and installation of driver's seat backrest )

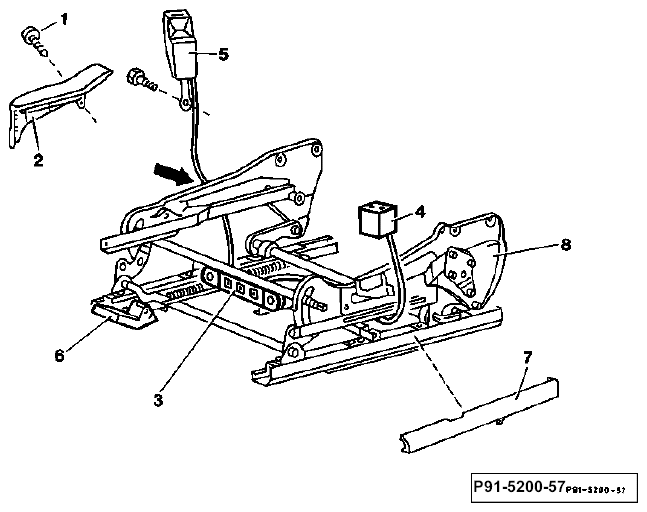

Fig 1: Identifying Driver's Seat Adjuster Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screw (1) on finisher (2)	screw out.
Electrical cable	unclip from belt buckle on seat frame (arrow).
Screws (2 pieces) on terminal strip (3)	screw out.
Terminal strip (3), pneumatic line (4) and belt lock (5)	remove.
Finisher (2)	remove toward front.
Cover (7)	disengage and remove.
Seat adjuster (8)	reinstall in opposite order.

Removal, installation

Screw out screw (1).
Unclip electric cable from belt buckle (5) on seat frame (arrow).

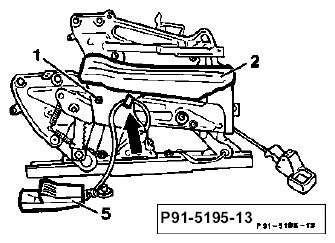

Fig 2: Locating Electric Cable Clip On Belt Buckle
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw out screws (2 each, arrows) on terminal strip (3).
Remove terminal strip (3), pneumatic line (4) and belt buckle (5).
Remove finisher (2) toward front.

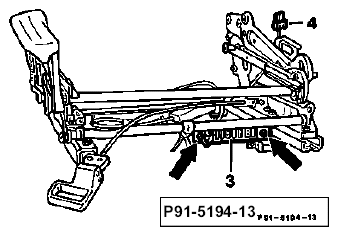

Fig 3: Locating Screws On Terminal Strip
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Disengage cover (7) and remove.
Reinstall seat adjuster (8) in opposite order.

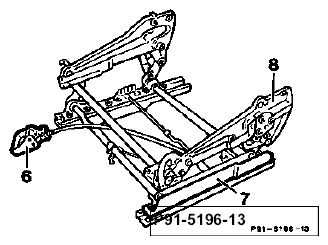

Fig 4: Identifying Seat Adjuster

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
