Removal and installation of cloth apron on bottom of front seat backrest - ra91001400193x(0193)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Rear panel of driver's or front passenger seat backrest removed (Removal and installation of rear panel on front seat back rest )
| Rubber tensioners (arrows) on lower seat cushion frame | detach (2 each). |

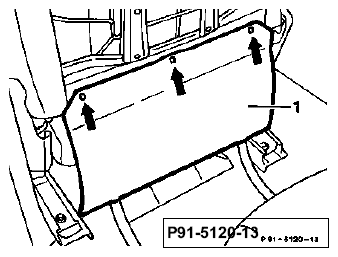

| Sheet metal lugs (arrows) on seat backrest frame | bend open. |
| Cloth apron (1) | remove. |
| Reinstall | in reverse order. |
