Checking the seat belts for damage - wh9150pkw0000x(9150)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85
If a customer refuses to have a damaged seat belt replaced, note refusal on repair order.

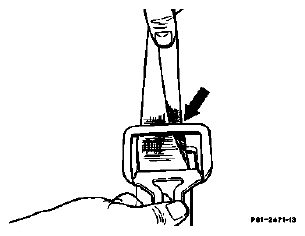

| Belt strap | pull out completely, check for damage (cut fibres, chafed points or other damage). |
| Belt strap | check for twisting. |
| Automatic roller | check for proper function. In event of complaint check whether seat belt is twisted 180° behind panelling. For this purpose remove panelling at extra cost, reattach. |
| Locking function of automatic roller | check by pulling belt strap out quickly. |
