Seat occupied recognition sensor with automatic child seat recognition, location - GF91.60-P-4008-01GC
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

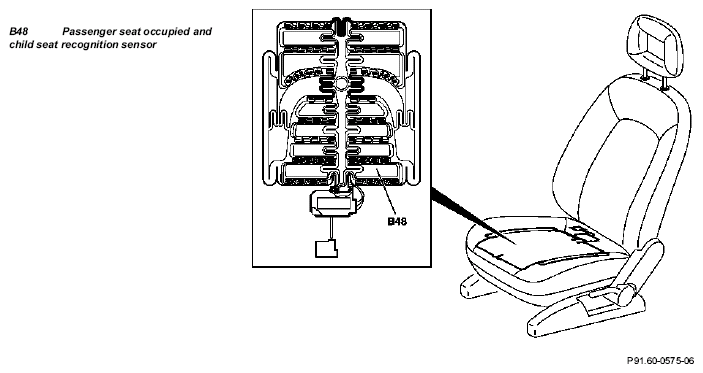

Location of component
The passenger seat occupied and child seat recognition sensor (B48) consists of a pressure-sensitive sensor mat which is laid in the seat cushion of the front passenger's seat.
