Seat occupied recognition system with automatic child seat recognition, location/task/design/function - GF91.60-P-4008A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODELS 129, 140, 202 as of 1.6.97, 210 as of 1.3.97 up to 1.6.98 with CODE (491) U.S. version
MODELS 170, 208, 210 as of 1.6.98, 215, 220
MODEL 202 as of 1.12.97 except CODE (491) U.S. version
Location of component

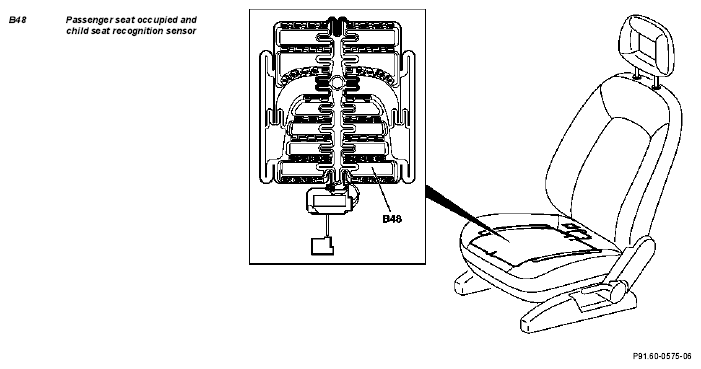

| Seat occupied recognition sensor with automatic child seat recognition, location | The passenger seat occupied and child seat recognition sensor (B48) is integrated in the seat cushion of the front passenger's seat. | ||
| Seat occupied recognition sensor with automatic child seat recognition, task | The seat occupied recognition sensor blocks deployment of the front passenger airbag, side airbag and emergency tensioning retractor when the front passenger seat is not occupied. The automatic child seat recognition blocks deployment of the front passenger airbag when a child seat is in its designated position. | ||
| Seat occupied recognition sensor with automatic child seat recognition, design | GF91.60-P-4008-02A | ||
| Seat occupied recognition sensor with automatic child seat recognition - function | Models 170, 208, model 202 as of 12/97 Models 129, 140, 202 as of 6/97 Model 210 as of 3/97 up to 6/98 |
GF91.60-P-4008-03A | |
| Model 210 as of 6/98, model 215, model 220 | GF91.60-P-4008-03B |
