Preparations for dimensional and comparative measurement - AR40.30-P-0401A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 129, 140
Fig 1: Identifying Preparations For Dimensional And Comparative Measurement - Model 129, 140 (1 Of 3)
Fig 2: Identifying Preparations For Dimensional And Comparative Measurement - Model 129, 140 (2 Of 3)
Fig 3: Identifying Preparations For Dimensional And Comparative Measurement - Model 129, 140 (3 Of 3)
| Checking | |||
| 1 | Align vehicle horizontal in the longitudinal direction by loading with suitable weights | Measurement of inclination via door entrance edges, e.g. carry out with a spirit level. | |
| 2.1 | On vehicles with cross traverse (63a), remove and install this | ||

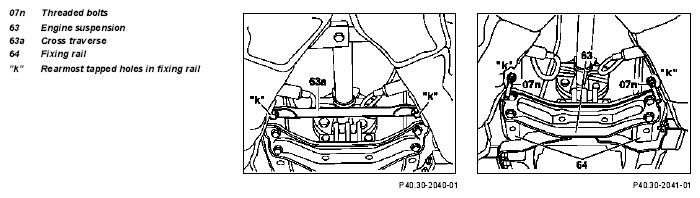

| 3 | Screw in threaded bolts (07n) | Depending on the model, Remove cross traverse (63a) or unscrew rear bolts from engine suspension (63) or remove plugs for tapped holes. |
|

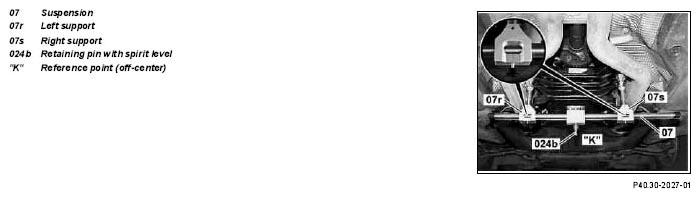

| 4 | Insert suspension (07) horizontal and adjust supports (07r, 07s) | Adjust according to the respective model | AR40.30-P-0401-01A |
| Figure | |||

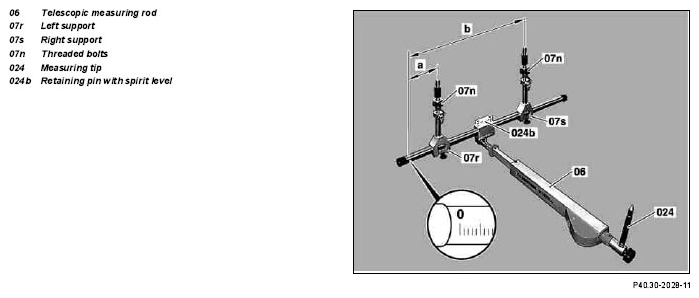

| 5 | Install telescopic measuring rod (06) with connecting parts on retaining pin (024b) | Insert respective measuring tips/pins (024) for the corresponding distance or comparative measurement | |
| Fig 8 | |||
| Fig 5 | |||
| Fig 6 | |||
| Fig 7 | |||
| 6 | Carry out distance and comparative measurement at front and rear axle | Model 129 | AR40.30-P-0402A |
| Model 140 | AR40.30-P-0402B |
