Checking and adjusting control point of level control - AR40.20-P-0310A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140
| Testing | |||
| 1 | Inspect vehicle level at front and rear axle and set. | AR40.20-P-0300B | |
| 2 | Inspect oil level of level control. | If necessary adjust to correct level | |

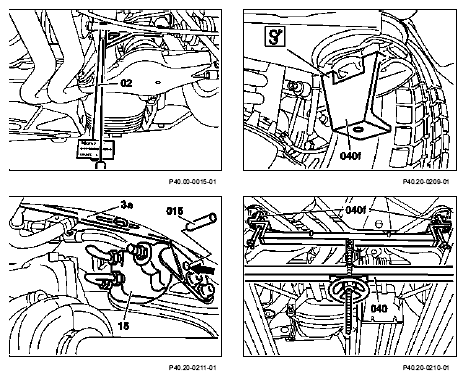

| 3 | Fit measuring device (02) onto the input shaft. Pull down rear of vehicle to the specified control point (simulate laden vehicle). | *BE40.20-P-1001-04A | |
| Figure | |||
| Fig 2 | |||
| Fig 3 | |||
| Fig 4 | |||
| Adjusting | |||
| 4 | Insert 4 mm drift (015) through the hole (arrow) in the adjusting lever of the level control, withdraw. | If setting is correct
, the drift (015) can be inserted into the hole in the level control. Setting of connecting rod faulty ↓. |
|
| Slacken setting device of connecting rod (3a). Fix adjusting lever of level control (15) with 4 mm drift (015) inserted through the hole (arrow). Tighten adjusting device of connecting rod in this position. |
CONTROL POINT OF LEVEL CONTROL OF REAR AXLE
| Number | Designation | Model 140 up to 12/92 | Model 140 as of 01/93 | |
|---|---|---|---|---|
| BE40.20-P-1001-04A | Control point of rear axle | mm | -5 ±10 | -15 ±10 |
